Fuel Injection Pump Test Bench

Product Description

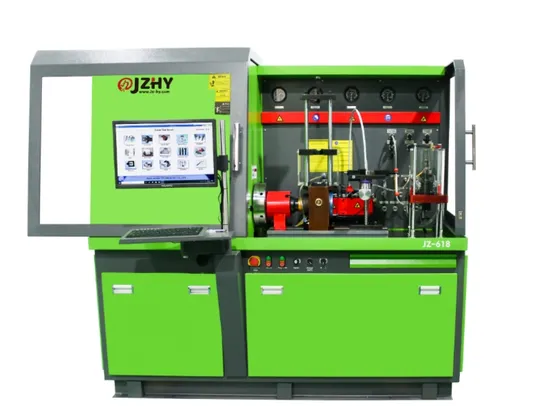

JZ-618 Injector Actuator Pump Common Rail 4 Pin Integrated Machine Test Bench

Standard Functions:

Test actuator pump
Test piezoelectric injector
Test smart injector
Test HEUI injector
Test pump nozzle & unit pump EIU,EUP
Test high-pressure common rail pump Test CR pump

Assist Functions:

Test resistance & inductance
Flow sensor linear calibration
Oil nozzle opening pressure flow
Fuel tank oil level lower limit alarm
High pressure filter clogging reminder
Optional Functions:

Test 4-pin injector
Testing X15, Q60
Test 9.3,HP5 HP6 HP7 pump
Testing HPI actuator
Test 4-6 injectors at the same
Test 4-plunger common rail pump
Hardware Configuration:

Gear flow sensor
Dual DRV configuration
4 flow sensor metering units
Common rail pipe with filter function
Injection drive and system voltage monitor
Built-in oil actuated pump & high pressure common rail pump
Generate Correction Code:

Generate 6,7,8,9,10-digit IQA code
Generate 16,24,26,30,32-digit QR code
Generate C2i,C3i,C4i correction code
Generate piezo IMA,ISA code
Generate IIC code
Generate XPI correction code
Product Details
Technical Parameters

Technical Parameters
Model Number				JZ-618
Color				Green/Red
Frequency				50Hz / 60Hz
Motor Height				125 MM
Main Output				15 KW
Speed				0~3500 RPM
Speed Control Mode				Frequency Converter
CR Pump Motor				5.5 KW
Diesel Supply Motor				0.75 KW
Oil Tank Cooling Output				105 Watts
Power				380V AC 3-Phase-4-Wire
Cooling / Heating				Air Conditioning (1P)
Diesel Tank Volume				40L Filtration Accuracy:3μm
Engine Oil Tank Volume				20L Filtration Accuracy:5μm
Fuel Temperature				40ºC ± 2ºC
Nozzel Flow Sensor				Gear Flow Sensor 2 PCS
Engine Oil Flow Sensor				Gear Flow Sensor 1 PC
Max Engine Oil Pressure				150Bar
Control Return Voltage				DC 12V / DC 24V
ECU Internal Boost				0-200 VDC(max)
CR Pressure				0-2700 Bar
Rail Pressure Testing Accuracy				±5 Bar
Machine Dimension				1880*1020*1750MM
Packing Dimension				1980*1160*1930MM
Net Weight				1020KG
Gross Weight				1115KG
