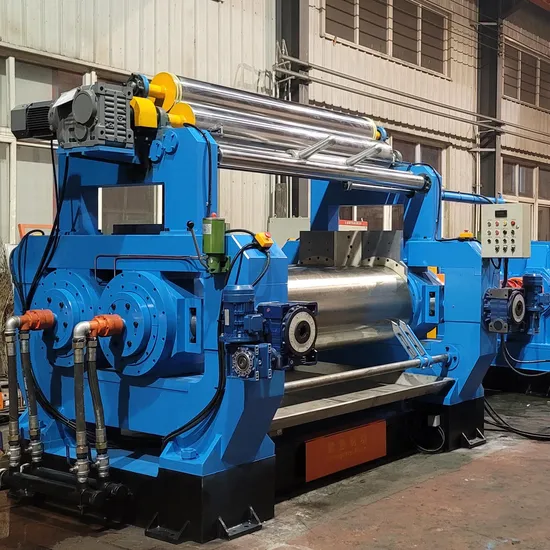

High Accuracy 16" Open Mixing Mill Two Roll Mill

US$26,169.00-29,169.00 1 Set (MOQ)

Basic Info.

Model NO.
XK-400
Certification
ISO
Condition
New
Customized
Customized
Automatic Grade
Automatic
Structure
Horizontal
Transport Package
Steel Pallet
Trademark
Deyu Machinery
Origin
Dalian China
HS Code
8477900000
Production Capacity
5000 Sets/Year

Product Description


Deyu mixing mill products:
Detailed specification:
XK-160 XK-360 XK-400 XK-450 XK-550 XK-560 XK-610 XK-660 XKY-450
roll diameter (mm) 160 360 400 450 550 560-510 610 660 450
working length 320 900 1000 1200 1530 1530 1930 2130 1200
front roll linear speed
m/min		 9m 16.7 18.65 21.80 28 26.4 30.5 28 25.6
speed ratio of rolls 1:1.35 1:1.25 1:1.27 1:1.27 1:1.2 1:1.2 1:1.1 1:1.24 1:1.08
max. roller range
(mm)		 4.5 10 10 12 16 15 15 15 12
one addition (kg) 1-2 20-25 18-35 80 120 120 140 165 80
motor power (kw) 5.5 30 45 55 110 90 160 185/250 55
overall dimention
L x W x H mm		 1133
920
1394		 4200
1780
1760		 4471
1850
1760		 5005
1790
1830		 6300
2230
1900		 5450
2200
1580		 6575
2910
2000		 6700
3400
2100		 5005
1790
1830
gross weight (ton) 2 6.5 8.3 10 22 22.5 44 49 10
