Precision Engineered Vertical CNC Lathe Machine for Heavy Duty Use

Product Description

a prestigious and high-caliber supplier from China, known for excellence
expert professional manufacturer specializing in metal turning vertical CNC lathe machines
Product Description
Expertly crafted with an exceptional array of experience in professional production line customization design, our solutions are tailored to deliver precise and innovative results.
Our offerings are meticulously aligned with the unique and personalized needs of each user, ensuring perfect harmony and satisfaction.
Driven by a commitment to unparalleled quality, our manufacturing concept is deeply rooted in excellence and precision. Specifically engineered to cater to the discerning requirements of quality-level users, our solutions are second to none.

Vertical CNC Lathe: Unrivaled Advantages & Features
Key Technology Highlights
Robust and Rigid Bed Design
Utilizing an integral casting process reinforced with rib structures, complemented by high-precision, widened 3+2 heavy-duty cylindrical roller screw guide rails, the bed is engineered for superior anti-deformation abilities, ensuring unmatched stability and precision even during the most demanding heavy workpiece operations.
High-Torque Intelligent Drive System
Fitted with customizable high-torque servo motors, our system achieves an impressive low-speed cutting torque of 3000N·m. This capability flawlessly caters to the exacting needs of processing high-strength materials like cemented carbide and titanium alloy, seamlessly transitioning from rough to fine processing with ease.
Intelligent Production Module
Our state-of-the-art production module offers optional features such as an automatic tool setting instrument, tool breakage detection system, and a cloud data management platform, facilitating 24-hour unmanned production and significantly boosting efficiency.
Specific Applications for Twins Vertical Lathe CNC:
Industries of Application:
Our advanced vertical CNC lathe finds its applications in diverse industries including shipbuilding, wind power energy, rail transportation, aerospace, and heavy machinery, among others.
Ultra-Large Rotating Parts:
Our machines adeptly handle the manufacturing of massive parts such as 8-meter diameter marine propellers and *** pressure vessel flanges.
High-Precision Structural Parts:
We specialize in producing high-precision structural components like wind turbine main shafts, high-speed rail hubs, and rocket fuel tanks.
Complex Special-Shaped Parts:
Our technology excels in crafting intricate, specially-shaped parts including shield machine cutter heads, turbine blades, and mining machinery gearboxes.
Product Parameters
| DETAIL PRESENTATION

MODEL	SWING DIAMETER	TURNING DIAMETER	WORKPIECE LENGTH
H-VL700	770	700	650/750

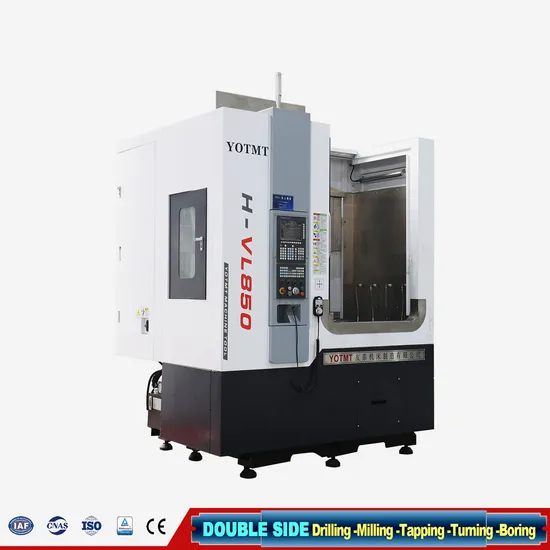

H-VL850	920	850	650/1000
H-VL1000	1100	1000	800/1200

| ARGUMENT

ITEM	UNIT	H-VL700	H-VL850	H-VL1000
SPINDLE TYPE		Precision type
MAX. SWING DIAMETER	MM	770	920	1100
MAX. TURNING DIAMETER	MM	700	850	1000
MAX. WORKPIECE LENGTH	MM	650/750	650/1000	800/1200
SPINDLE SPEED	RPM	50-1500	50-1500	30-800
X/Z AXIS STROKE	MM	580/650-750	580/650-1000	700/800-1200
X/Z AXIS FAST MOVE SPEED	MM	20000/24000	16000/20000	12000/16000
REPEAT POSITIONING ACCURACY	MM	0.005/0.008	0.005/0.008	0.006/0.009
POSITIONING ACCURACY	MM	0.008/0.01
CHUCK SIZE	INCH	18/21/24	21/24/28	24/28/32
CHUCK TYPE	-	hydraulic
TOOLING TYPE		Row type/turret	Row type/turret	turret
STATION TOOLING	PIECE	2/4/6/8	2/4/6/8	2004/5/6
SPINDLE POWER	KW	18.5	22	30
ACCURACY PROCESS		IT5-IT6	IT5-IT6	IT6-IT7

Detailed Photos

| PRODUCT PRESENTATION

Discover our Vertical Lathe CNC series, expertly crafted to deliver unmatched stability. With a commitment to precision, our series boasts a meticulous structural design and premium material utilization.
Tailored Customization Options:
1. Tool Rest and Cutting System
Experience the versatility of our multi-turret configuration.
Enjoy the benefits of a standard side tool rest combination.
Our innovative vertical tool rest coupled with a side tool rest combination supports dual tool rest synchronous processing for enhanced efficiency.
Opt for our optional four-axis/five-axis linkage tool rest, facilitating seamless milling and drilling composite processing.
Our heavy-duty static pressure guide tool rest is perfect for high-speed cutting with carbide tools.
Spindle Unit
Choose between our standard frequency conversion spindle or the hydraulic spindle to best suit your needs.
Select from a standard three-jaw chuck, magnetic, or vacuum chuck for your precision tasks.
2. Automation and Auxiliary Devices
Experience seamless operation with our automatic tool change system.
Our tool magazine offers capacities ranging from 12 to 40 stations, supporting HSK/TSC interfaces for diverse applications.
The automatic head change device facilitates effortless switching between turning and milling spindles.
Loading and Unloading System
Pallet exchange device ensures continuous processing of multiple workpieces for enhanced productivity.
Our robot integration interface is compatible with leading brands such as FANUC and KUKA.
High-pressure internal cooling system for superior performance.
The centralized automatic lubrication device offers optional intermittent or quantitative oiling modes.
3. Accuracy Enhancement Configuration
Measurement and Compensation
Utilize our laser interferometer pitch compensation module for remarkable accuracy of ±0.005mm/m.
Incorporate online measurement probes from Renishaw or Heidenhain for precision control.
Structural Reinforcement
Our heightened column design offers structural reinforcement and minimizes thermal deformation.
Enjoy the benefits of a fully hydrostatic guide rail kit which reduces thermal deformation impact.
4. Transmission System
Select from belt drive, gear drive, or direct connection of electric spindle for optimal transmission.
V. CNC System Options
Basic Type: Choose between GSK and KND for foundational control.
High-End Type: Elevate operations with Siemens 828/840, Fanuc 0I-MF PLUS/31i, or Mitsubishi systems.
5. Protection and Chip Removal
Equip your machine with a fully enclosed protective cover offering IP67 dustproof and waterproof protection.
Choose between a spiral chip conveyor for cast iron chips or a chain plate conveyor for long roll chips.
The oil mist collection device complies with CE environmental standards and ensures cleaner operations.


Certifications
| CERTIFICATES & ACTIVITIES

Proudly recognized as China's preeminent leader in the manufacturing of CNC machine tools designed specifically for double-sided processing.
Our expertise is fortified by hundreds of cutting-edge technical patents, allowing us to specialize in the drilling, milling, and turning of shaft parts with unparalleled precision and accuracy.
Our superbly engineered positioning machine tool products have garnered high esteem and trust from discerning users in developed nations across the globe.
Company Profile


|ABOUT FACTORY
Shandong Youtai Machine Tool Manufacturing Co., Ltd. is proudly situated in Tengzhou City, a vibrant hub renowned as the "Capital of Small and Medium-sized CNC Machine Tools in China." This historically rich city not only boasts a strong cultural heritage as the birthplace of esteemed figures like philosopher Mozi and master craftsman Lu Ban but also stands near the revered cultural site of Confucius' three holes. Our strategic location serves as a beacon of cultural heritage coupled with a modern sanctuary for metalworking excellence, playing a pivotal role in propelling the global machinery manufacturing industry forward with unrivaled prowess and innovation.
Since our establishment in 2011, Shandong Youtai Machine Tool has been a beacon of pioneering innovation in crafting efficient machining equipment tailored for shaft parts. As a technology-driven enterprise, we are dedicated to developing premium CNC machine tools and specialized machines tailored for a wide range of industries. Our expansive facilities, stretching over 50 acres, encompass more than 30,000 square meters of cutting-edge workshops and offices. We are equipped with state-of-the-art precision machines, including gantry machining centers and CNC guide rail grinders, all complemented by high-precision measuring equipment, ensuring the production of superior, high-quality products.
Our dynamic team is composed of over 100 dedicated professionals, including 30+ skilled technical experts and an equal number of engineering specialists. We thrive on profound collaborations with over ten custom part enterprises. Through our relentless independent R&D efforts, we have successfully developed a diverse array of machines, including milling end face drilling center hole tools, double-side lathes, and twin-head horizontal machining centers intricately designed for cylinder barrels. Our impressive portfolio spans more than twenty series and over fifty distinct products, which are triumphantly exported to developed nations across Europe and Asia, bolstering our status as a prestigious and respected domestic brand in the industry.
