Fd-9bl Double Sided Grinding Machine/Polishing Machine for High Hardness Parts

Product Description

Why Ponda?
Ponda has profound experience of lapping, polishing and thinning. We heretofore supplied more than 60, 000 lapping process solutions and appliances over the industries of machinery, electronic, aerospace, aviation, automotive, atomic energy, optics; the substances of metal, SiC wafer, ceramics, glass, industrial sapphire, plastics, and any other composites.
Products Show
Particular point:

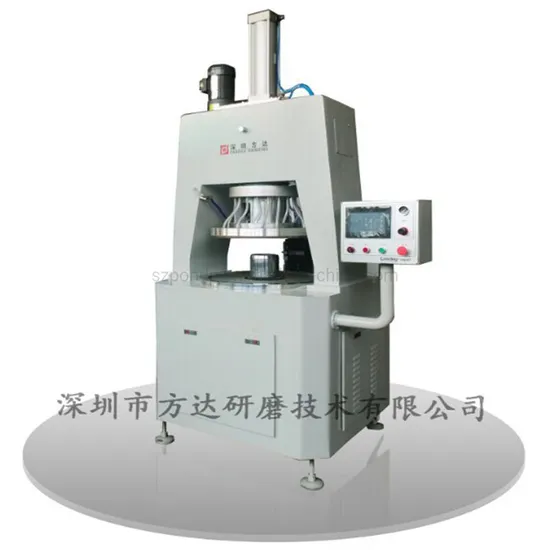

1. The upper and lower grinding disks of this series of grinding machines can be repaired automatically.
2. The four motors are used to drive synchronously, the speed change range is wider, the motion accuracy is higher, the response speed is faster, can adapt to the requirements of different grinding materials and grinding process, the soft start, soft stop, the speed is stable, the impact is small.
3. The shaving machine is driven by servomotor, which can ensure the sliding of the hydraulic suspension guide is more stable and the plane dressing effect is not good.
4. The control system adopts DSP, Web-Link, color terminal and other advanced technologies, the system response speed is faster, more accurate, and has remote monitoring, remote maintenance functions;
5. This series of grinding machine has grating thickness control system, the thickness tolerance of processed products can be controlled within the range of ±0.002mm.
APPLICATION

Process	Industry by Substance	Industry by Applicability
Single Plate Lapping & Polishing	Metal And Alloy Ceramic Oxide Carbide Glass Plastic Nature Stone	Sealing	valve and sealing ring(liquid, oil, gas)
		Semiconductor	LED substrate(Al2O3, Si, SiC) wafer substrate(Si, SiC, Ge, Ge-Si, GaN, GaAs, GaAsAl, GaAsP, InSb, ZnO, AlN)
		Plastic	PE, E/VAC, SBS, SBR, NBR, SR, BR, PR
		Phone Frame(flat)	back plate
		PCB	adhesive, coating, circuit
		Optics(flat)	optical lens, optical reflector, scintillator cube, holographic glass, HUD glass, screen glass
		Radar	oxide coating plate
		Gemstone	jade, sapphire, agate, etc.
		Others	graphite block, gauge block, micrometer gauge, diamond, friction plate, knife, bearing, metal components, and any other precise hardware.
*NOTE: lapping can only remove slight thickness of workpiece. If need ultra thinning (≤100μm), thinner machine are needed.

SPECIFICATION

Standard Specification
Machine Model	FD6B		FD9B		FD13-6B
Lower Plate Diameter	Φ386 mm / 15 inches		Φ640 mm / 25 inches		Φ973 mm / 38 inches
Upper Plate Diameter	Φ386 mm / 15 inches		Φ640 mm / 25 inches		Φ973 mm / 38 inches
Star Wheel Parameter	DP 12, Z=66, A=20°		DP 12, Z=108, A=20°		DP 19.3, Z=152, A=20°
Conditioning Ring Parameter	DP 12, Z=66, A=20°		DP 12, Z=108, A=20°		DP 19.3, Z=152, A=20°
Max. Workpiece Diameter	Φ120 mm		Φ180 mm		Φ290 mm
Process Thickness	0.2mm≤N≤20mm		0.2mm≤N≤25mm		0.2mm≤N≤30mm
Number of Station	3≤N≤5		3≤N≤5		3≤N≤5
Plate Rotate Speed	0-60 rpm		0-60 rpm		0-50 rpm
Total Weight	600 kg		2000 kg		3200 kg
Total Floor Space	700×950 mm		1350x960 mm		1700×1380 mm

Built-In Optional Kits
Grade		Standard		Upgraded		Advanced
Controls		Digital		Digital		Touch-Screen PLC
Pressure Source		Hand Weight Block		Pneumatic Weight Block Manual		Pneumatic Press Integrated with PLC
Slurry Supply System		-		Manual		Digital, Manual
Cylinder Bar Drive System		-		Manual		Integrated with PLC
Conditioning Ring Drive System		-		Manual		Integrated with PLC
Machine Enclosure		-		Framed by Aluminum Alloy		Framed by Metal Plate
*NOTE: the optional kits based on the production requirements, making samples can confirm if they are necessary.

SAMPLE DEMONSTRATION (SINGLE PLATE)
Patent
About the Company Ponda is a high-tech enterprise specializing in all kinds of high precision grinding equipment, polishing equipment and itssupporting products and consumable materials
We have a production workshop and testing equipment, assembly workers and mechanical design engineers45 people Delivery & Packing
Packing Details : Packing, 1 pcs/carton.
FAQs
Q1: Which machine is most applicable for my product?
A: It usually depends on 5 requirements and parameters of your product: flatness, roughness, thickness, dimension, productivity:
1. If better flatness and roughness were required, you might need both lapping and polishing machine.
2. If to thin the product in a big margin, such as 500μm, you might need a thinner machine for extra.
3. If the productivity were excessive, you might need larger machine or to expand production line.
Additionally, we can confirm the production line as we make samples for you.
Q2: Does Ponda charge for making samples?
A: No, it's free to make samples.
Q3: Is Ponda trader or manufacturer?
A: We are manufacturer, certified National High-Tech Enterprise.
Q4: How long does it take machine to deliver?
A: Approximately 15 days to deliver. If the machine are out of stock, we need 15 days more to manufacture.
Q5: Does Ponda provide oversea setup and after-sale service?
A: Yes, we provide oversea service and online tutorial.
Q6: How many type of machine does Ponda manufacture?
A: We have 21 major series of machines, 5 different types run in different principles, more than 15 types of plates, 100 types of slurries.

---
