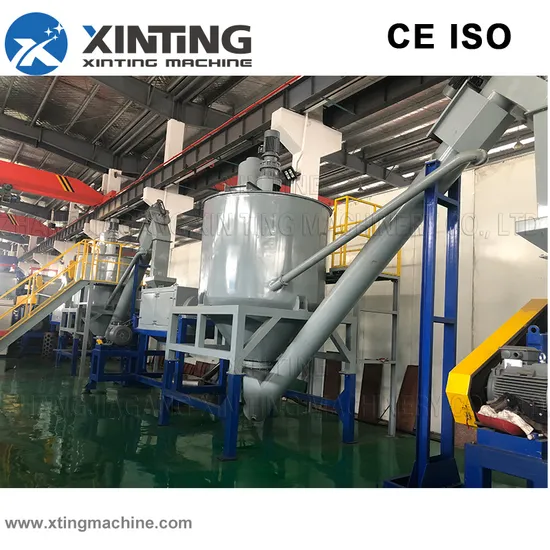

Pet Recycling Line Hot Wash Drink Bottle Pet Bottle Washing Recycling Machine

US$5,000.00-60,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
xt500-3000
Material Processed
Plastic Bottle
Plastic Type
PET
Screw
Single-Screw
Automation
Automation
Computerized
Computerized
Certification
QS, ISO9001:2008, CE
Keywords
Pet Bottle Recycling Machine
Invertor
ABB
Motor
ABB
Installing
Engineering Overseas Install
Name
Pet Recycling Line Hot Wash Drink Bottle Pet Bottl
Transport Package
Nude Package or Wood Case Package
Specification
300-2000KG/HR
Trademark
XINTING
Origin
China
HS Code
8477800000
Production Capacity
Max 3000kg/Hr One Line

Packaging & Delivery

Package Size
3000.00cm * 400.00cm * 600.00cm
Package Gross Weight
20000.000kg

Product Description

PET plastic bottle labeling washing line PET flakes washing line
Features: 1. High automation level, try best to reduce your cost on labor (especially for three shifts) and ensure high processing capacity: 500-3000kg/hr. 2. Friendly control system (PLC integrated & separated control on each machine) and Touch screen panel, easy for operation, monitor and emergency stop.
3. All parts contacting with plastic material and water are made of high-quality 304 stainless steel; ensure no second pollution to flakes.
4. This China Professional Manufacture PET Bottle Crushing Washing Drying Recycling Line can easily wash and recycle waste PET bottle flakes. Equipment at the end of the washing line so that the completely dry flakes can be collected and packed directly after being washed.
5. The whole production line can be designed on the basis of how dirty the flakes are, and make sure of the quality of the final products.
6. Coordinating the production line with follow programmed work (granulating system), and it will make waste and dirty PET bottles to be the PET granule material and in order to producing new PET bottles.

Flowchart Plastic PET Bottle Washing and Recycling Line for plastic recycling machine :
Conveyor belt →Label remover machine → Sorting table→Conveyor belt → Crusher → Screw loader→ Float washing tank→ Friction washing machine → Screw loader→Hot washer tank → High-speed friction washing machine → Floating washing tank → Dewatering machine → hot air dryer system → zig zag air classifier system → Silo

Product Description:
The pet bottle recycling line is specially designed to produce fiber use PET flakes.
The flakes can be used for the 2-D, 3-D PSF, filament yarn, PET strap, PET sheet or PET film.
The pet bottle recycling line can adopt the PLC automatic control of the full line to control the final products quality and save energy.
Pet bottle recycling line can be equipped with the Europe automatic material sorting system and color sorting system.
Pet bottle recycling line can be customized according to the raw material and customer requirement
No.
Machine List Function
1 Belt Conveyor Bottles conveying
2 Bottle Label Remover Remove above 90% labels for both common and compressed bottle; No flakes waste and no water consumption
3 Manual Sorting Belt Manually sort out PVC bottle, labels, and other impurities
4 Belt Conveyor Bottle conveyor tp crusher
5 PSJ1200 Crusher Bottle crushing into flakes
6 Horizontal Screw Loader Conveying flakes to next screw loader
7 Screw Loader PET flakes conveying
8 Floating Washer Wash flakes and remove floating materials as PP, PE and Caustic soda
9 Low Speed Friction Washer Remove sand, mud and dirty
10 Hot Washer After hot washing, it's easier to remove oil, glue
11 Screw Loader PET flakes conveying
12 Hot Washer After hot washing, it's easier to remove oil, glue
13 Screw Loader PET flakes conveying
14 High Speed Friction Washer Remove the glue and dirty
15 Screw Loader PET flakes conveying
16&17 Floating Washer Wash flakes and remove floating material as PP, PE and Caustic Soda
18 Spray Washer Remove the Caustic Soda
19 Centrifugal Dryer Drying and flakes moisture reach 2%
20 Pipeline Dryer Hot air drying, moisture <1%
21 Label Flake Separator Remove little amount of label and dust in PET flakes
22 Packaging System Storage silo for PET flakes
23 Electric Cabinet Electric control for the complete line, can be customized

Technical datas
Input capacity 500kg/h 1000 kg/h 2000 kg/h
Workshop(M*M*M) 42 (L)×10(W)×6(H) 55(L)×15(W)×6(H) 70(L)×18(W)×6(H)
Ancillary staff 6Persons 8 Persons 12 Persons
Installation power 156KW 307KW 420KW
Water Consumption: 2Ton/h 3.5Ton/h 5 Ton/h
Final product Moisture: max 1%
Bulk density: 0.3G/CM3
Particle size: 14-18mm
Metal content: max.20ppm
Floatable contamination: less than 200ppm
Total impurity: 320ppm
Moisture: max 1%
Bulk density: 0.3G/CM3
Particle size: 14-18mm
Metal content: max. 20ppm
Floatable contamination: less than 200ppm
Total impurity: 320ppm
Moisture: max 1%
Bulk density: 0.3G/CM3
Particle size: 14-18mm
Metal content: Max. 20ppm
Floatable contamination: less than 200ppm
Total impurity: 320ppm
