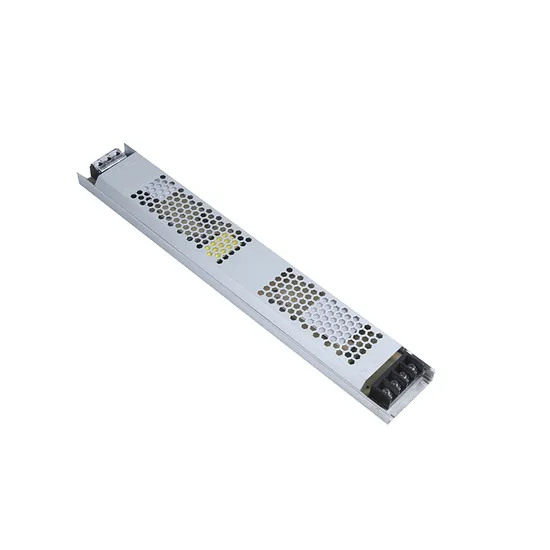

Product Description The FB series is an ultra-thin light box power supply with an all-aluminum housing and honeycomb vents. The product has constant voltage and constant current working mode, which can adjust the brightness of the light. Suitable for light box LED signs, billboards, lighting projects or security monitoring systems.
Product selection
| ZY-60FB-12/24
| ZY-150FB-12/24 | ZY-300FB-12/24
| ZY-400FB-12/24 |
Input voltage
| 176~264VAC
|
Output voltage/current
| 12V -5A ; 24V- 2.5A
| 12V -12.5A ; 24V- 6.25A | 12V -25A ; 24V- 12.5A | 12V -33.3A ; 24V- 16.6A |
Voltage regulation accuracy
| ±3%
| ±3 | ±3%
| ±3 |
Efficiency
| ≥88%
| ≥86% | ≥85%
| ≥85% |
Protection feature
| Overcurrent protection,Overvoltage protectionshort ,Short circuit protection
|
Protection feature
| GB4943/IEC62368,GB2324,EN55022,IEC61000,GB 17625,GB/T17626,GB/T14714
|
Operating temperature/humidity
| -30ºC~60ºC;5%~95%RH non-condensing
|
Altitude
| 2000m(Above 3000m, the height rises by 100m,Environment temperature drops 0.6ºC)
|
Heat dissipation method
| Natural cooling
| Natural cooling |
Production Display Our R&D team has multiple professional engineers with over 10 years of experience, using advanced production equipment and standardized production workshops. We have a complete manufacturing system, high production efficiency, and fast delivery!
