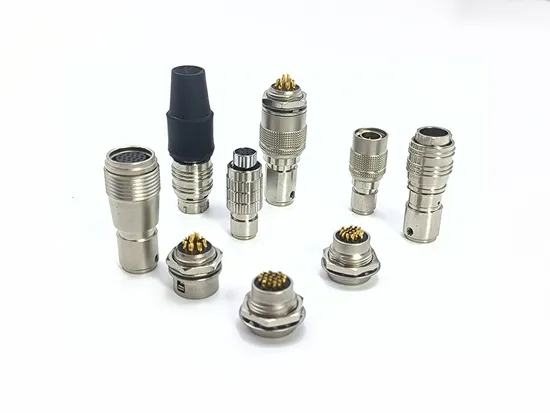

BEXKOM Factory Direct Sales Hirose Connector Compatible High Density EMC Shield IP67 Waterproof Circular Connector Industrial Camera Connectors

Product Description

Product Details

Shell Material:	Brass Chrome Plated	Contact Material:	Brass Gold Plated
IP Rate:	IP67	Contact Numbers:	4 ~ 20 Contacts
Working Temperature:	-50 ~ 125 Centigrade	Terminal:	Solder Or Print PCB

Product Description Hirose push - pull circular connectors (Hirose's push - pull type circular connectors) have a variety of characteristics and product lines. Here are some common features and introductions of related product lines:
Features Easy to Operate: The one - button push - pull locking mechanism enables simple and quick connection and disconnection operations. There is no need for complicated tools or operation steps, thus saving installation and maintenance time. Accurate Positioning: The multi - polarization design of the mating - guide keys can ensure that the connector reaches the specified position accurately, avoiding incorrect insertion and improving the reliability and stability of the connection. Clear Assembly Mark: Some models have a white assembly - in - place mark, which is convenient for users to quickly determine whether the connection is correct and in place, further improving the convenience and accuracy of the operation. Related Product Lines RP17 Series: This is a typical push - pull plastic circular connector series of Hirose. The rated current has different specifications such as 2.0A and 5.0A. The rated AC voltage is 100V, and the rated DC voltage is 140V. The operating temperature range is from - 10°C to 60°C, showing good environmental adaptability. It is suitable for internal connections of various electronic devices, such as communication equipment and industrial control equipment. HR30 Series: It belongs to the micro - sized plastic waterproof push - pull circular connector. It features a small size, low height, waterproof structure, and lightweight. Its mating cycle can reach 1000 times, and the rated current is 2A or 5A. It is suitable for small - sized electronic devices or outdoor equipment that have requirements for space and waterproof performance. HR10 Series: The connectors in this series adopt a push - pull self - locking connection method, which is simple and quick for connection and separation. It has an anti - mis - insertion function and an ingenious structure that can effectively save device space. It is suitable for devices with limited space, such as individual soldier equipment, industrial cameras, and inspection equipment. BH12 Series: It is a circular connector that combines signals and power. It supports a large current of 20A and is suitable for application scenarios with high - current requirements such as electric bicycles, providing a stable connection between the battery and the motor.
In general, Hirose push - pull circular connectors are widely used in various electronic devices and application scenarios due to their unique design and reliable performance.

---
