Haida Hdjs438 Plastic Crate Making Injection Moulding Machine

Product Description

Product Description
SYSTEM
Professional injection molding machine control system, famous brand high-performance electronic control components.
NOZZLE
Equipped with special nozzle for crate, easy to clean and remove.
SOLIDITY MACHINE BASE
High-strength clamping structure, high-rigidity frame, meet high-strength production needs.
SCREW
Screw special design, larger diameter, improve plasticizing ability, shorten the molding cycle, bimetal screw barrel, longer service life.
Detailed Photos

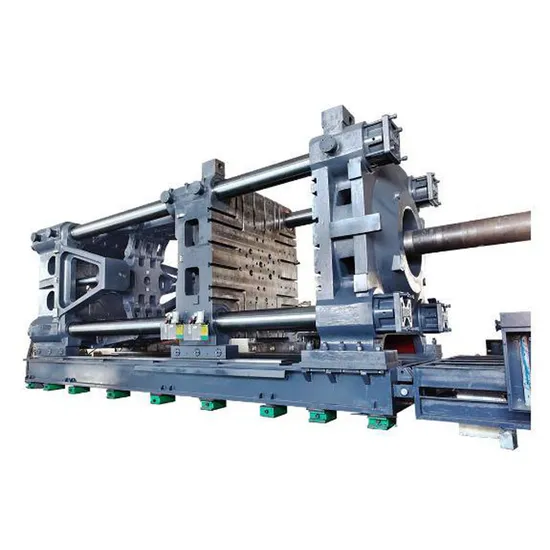

The Crate-making Series Machine has advantages such as platen with high strength, high rigidity, impact resistance, uniform stress distribution and less transformation,etc. Adopt new frame type structure to have more reasonable stress on machine body, and strengthened column has improved rigididity of well effectively.

Product Parameters

ITEM		UNIT	DATA
Injection Unit	Screw Diameter	mm	90
	Screw L/D Ratio	L/D	18.7
	Injection Volume	cm3	2354
	Shot Weight	g	2142
	Injection Pressure	Mpa	125
Clamping Unit	Clamping Force	KN	4380
	Opening Stroke	mm	720
	Space Between Tie-Bars	mm	765x765
	Mould Thickness(Min-Max)	mm	300-780
	Hydraulic Ejection	KN	125
	Ejector Stroke	mm	200
General	Pump Pressure	Mpa	16
	Motor Power	KW	41
	Heater	KW	25
	Machine Dimension	m	8.0x2.0x2.2
	Machine Weight	T	15
	Mould Orientation Ring Diameter	mm	Φ200
	Nozzle Radius	mm	SR15

Packaging & Shipping
After Sales Service
Company Profile
Ningbo Haida Plastic Machinery Co.,ltd is a manufacture specilized in manufacturing HAIDA series automatic plastic injection molding machine, vice president of China Plastic Machine Industry Association.
Established in 1992, the company has been devoted to development, production and sales of efficient, personalized and cost-effective injection machine.
-One of TOP 10 enterprises in plastic injection machine industry of China, company area over 2,000,000 square meters; Over 500 employees;
-Passed ISO9001, ISO14001, OHSAS18001 and CE Certification;
-Stronge R & D capability. More than 100 types of injection machine from 50 tons to 3300 tons are in production.
-More than 60 sales and service agencies at home and abroad.

---
