Basic Info.
Designed Speed
1200PCS/Min
Production Speed
1000PCS/Min
Computer Control Panel
Computer Control Panel
Product Specification
Medium
Automatic Grade
Full Automatic
Installation
350kw,Excluding Air Compressor,Glue Machine
Air Compressor
0.6-0.8MPa
Qualified Rate
>97%,Excluding Glue,Splice,Raw Jointer Defectives
Raw Materials
Fluff Pulp,Nonwoven,Sap,Adl,PE Film,Spandex,etc.
Machine Size
25m*10m*5.5m
Machine Color
Rich White,Can Be Designed as Customer′s Demand
Machine Direction
Face Machine From Left to Right(Fyi)
Transport Package
Export Standard
Product Description
MACHINE DETAILS

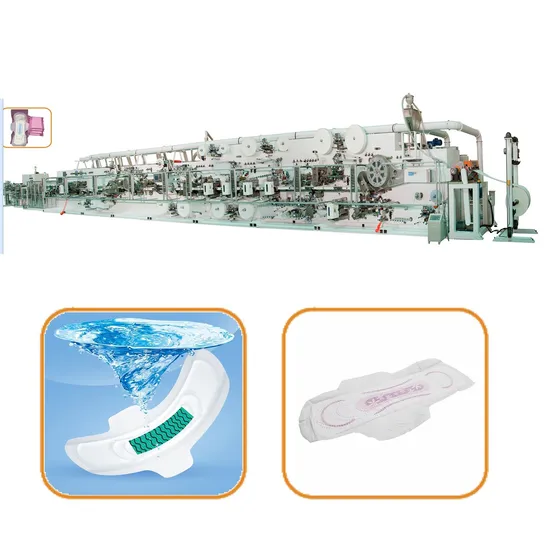

The full automatic servo sanitary napkin machine is an essential helper in improving the efficiency and safety of pad production. Equipped with multiple systems, including a fully automatic programmable control system, tension system, driven system, safety system, packaging system, and web guiding system, this production line enables full computer control and minimizes the need for human intervention. It is easy to operate and maintain. The product measures 240mm-320mm in length and can be customized to suit your specific needs. The product structure is mainly composed of flat (or textile edge) Topsheet, ADL (blue core), Tissue (or old), Cotton core(mixed with SAP), Back sheet, Release paper, Pouch film, and Fast-easy&package. Don't worry about finding the perfect machine, just tell us what you need and we'll create a custom solution for you.
| Design Speed | 1200pcs/min |
| Stable Work Speed | 1000pcs/min |
| Power Supply | 380V±5%,50HZ(3 phase,4lines,ground-in) |
| Installation | 350KW(excluding air compressor,glue machine) |
| Power Used | 400KW |
| Air Compressor | 0.6-0.8Mpa |
| Product weight Tolerance | ±5 |
| Qualified Rate | ≥97%(excluding glue,splice,raw jointer defectives) |
| Efficiency | ≥85% |
| Machine Size(L*W*H) | 25m*10m*5.5m |
| Working Size(L*W*H) | 28m*12m*7m |
| Machine Weight | 60Tons |
| Machine Color | Rich White(can be designed as customer's demand) |
| Machine Direction | Face the machine from left to right
(can be designed as customer's demand) |
MACHINE FEATURES
MACHINE PRODUCTION WORKSHOP
FINISHIED PRODUCTS
SANITARY NAPKIN(SANITARY PAD)
