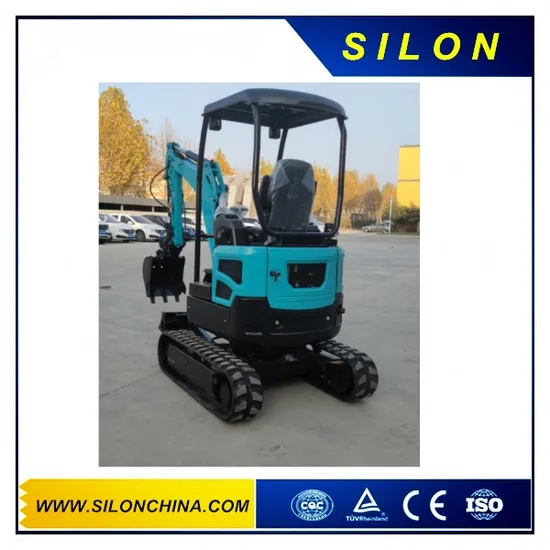

2t Mini Digger with Kubota Engine

US$16,000.00 1 Unit (MOQ)

Basic Info.

Model NO.
SL20
Type
Crawler Excavator
Usage
Special Excavator, Marine Excavator, Mining Excavator, GM Excavator
Bucket
Grab Shovel
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
0.1~0.5m³
Size
Small-Scale
Certification
CE, ISO9001: 2000
Condition
New
Operating Weight
2000kg
Standard Bucket Capacity
0.07m3
Engine Model
Kubota /D1105
Overall Dimensions
3555mm*1300mm*2290mm
Rated Power/Speed
14kw2200r/Min
Crawer Width
230mm
Carrier Roller (Each Side)
1
Support Roller ( Each Side)
4
Height of Blade
350mm
Maximum Digging Height
3700mm
Maximum Dumping Height
2440mm
Maximum Digging Depth
2400mm
Maximum Vertical Digging Depth
2025mm
Maximum Digging Distance(Working Radius)
4040mm
Minimum Swing Radius
1610mm
Transport Package
Nude
Specification
CE/ ROHS/SGS/GMP
Trademark
SILON
Origin
Luoyang, China
HS Code
84295212
Production Capacity
500 Units/Month

Product Description

Product Description
The crawler excavator is a compact excavator ,which matched KUBOTA engine , the boom of excavator can swing to left or right , suitable for different director digging for your working , fitted international brand main pump and valves and driving motor and slewing motor, hydraulic pilot servo operation system, with steel track, with broken pipeline system , the machine can changed track from steel to rubber. Can telescoping the track frame.Compact, light and small turning radius, are its unique structural features; which makes it plays a biggest role in limited working sites.
Product Parameters
ENGINE
Emission Standard Euro 5 /EPA4
Make KUBOTA
Model D1105
Power /Rotation speed 14kw
Number of cylinder 3
TRACK SYSTEM
Maximum Travel speed 2.5/3.5km/h
Width of track shoe 230mm
PERFORMANCE PARAMETER
Standard Bucket capacity 0.07m³
Swing speed 9 rpm
Max. Grade ability 35°
Maximum Bucket digging force 18KN
Maximum Arm digging force 11KN
Hydraulic system pressure 21.5Mpa
Machine weight 2000kg
MACHINE SIZE
Overall dimension (L*W*H) 3555mm*990/1300mm*2290mm
Axle base(Track length on ground) 1230mm
Track gauge 760mm/1070mm
Min.Ground clearance 150mm
Swing radius at tail 650mm
WORKING RANGE
Maximum Digging height 3700mm
Maximum Dumping height 2440mm
Maximum Digging depth 2400mm
Maximum Vertical digging depth 2025mm
Maximum Digging radius 4040mm
Minimum swing radius 1610mm
Maximum Lifting height of blade 240mm
Maximum Cutting depth of blade 270mm
Boom swing angle(Left) 75°
Boom swing angle(Right) 45°
