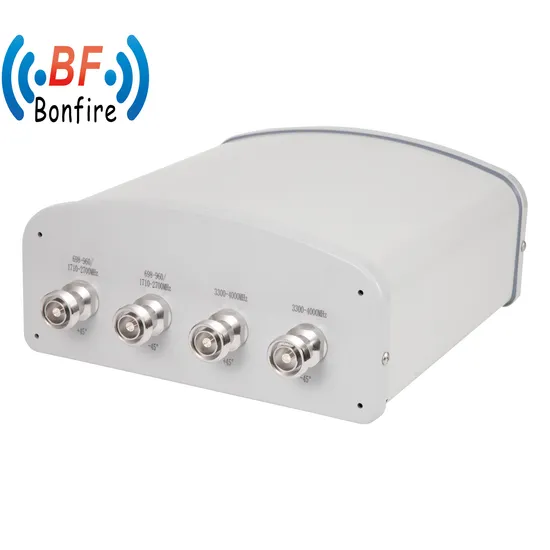

698-4000MHz Outdoor Directional 4 Port Panel Antenna 4X7/16 DIN-F

Product Description

Features:
★Wide frequency band, wide coverage
★PIM optimized design.
★Ideal for all kind of DAS applications.
★Low insertion loss.
★High power handling.
★Small size, Low weight.
★Good stability.
Specifications:

Electrical Specifications
Frequency Range		MHz	698-960 & 1710-2700		3300-4000
Gain		dBi	6.0±1	6.5±1	6.5±1
Polarization			2x±45°	2x±45°	2x±45°
Beam width	Horizontal	deg	75	70	68
	Vertical		70	70	60
VSWR			≤2.1	≤1.8	≤1.8
Isolation		dB	>15	>20	>23
PIM, 3rd Order, 2 x 20 W,		dBc	≤-150
Input Power per Port, maximum		watts	50
Mechanical Specifications
Dimensions, HxWxD		mm	300x280x130mm
Weight, without Mounting Kit		kg	/
Radome Material and Color			ABS, White, RAL9003
Mounting Kit			Panel, via hole (standard)
Connector Type and Location			DIN-F emale×4
Operational Temperature		oC	-55 to +60
Operational Humidity		%	< 95
Operating Humidity			≤95%RH
Operational / Max Wind Speed			150 / 200km/h
Wind Load @150km/h Frontal / Lateral / Rearside			214 / 60 /214N

All our products can satisfy :
1: Customized Color (Black, Red, Grey, Golded,etc.)
2: Used in IBS/DAS/Public Safety/ Small Cell /Public Network / Private Network
3: Trial order accepted to prove our superior quality
4: OEM/ODM available .
5: Product Lead: delivery within 4 weeks for mass production
6: Unbeatable price to support you win the bid
All our products category :
RF Antenna , RF combiner, Power Splitter , RF connector, Directional Coupler, Hybrid Coupler, RF Loads, RF Attenuator , Cable Assembly , RF Jumper Cable, RF Coaxial Cable , Cable clamp , etc.
We owe one-stop supply chain capability , you can get the lowest price for your DAS/IBS project .
Customers we served :
HUAWEI, ZTE, ERICSSON and their branch abroad, CHINA MOBILE, CHINA UNICOM, CHINA TELECOM and ROSENBERGER, RSF, etc.

Cooperate Once, Replace Never !

---
