Product Description

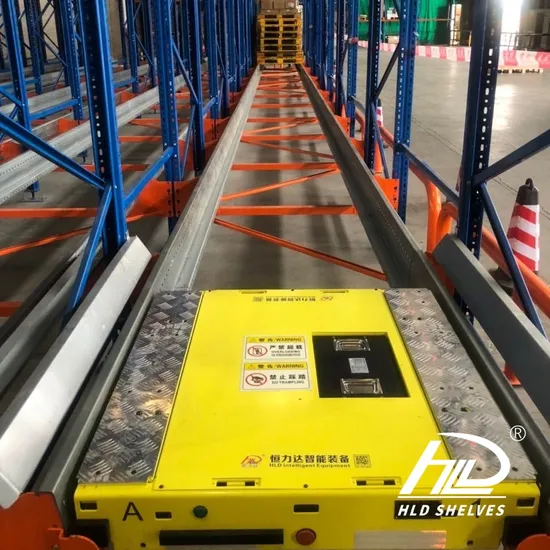

Product DescriptionThe Radio Shuttle Pallet Racking System is a high-quality, semi-automated storage solution for high-volume palletized loads and products. It's frequently used in warehouses, and distribution hubs for food and beverage products, or storage facilities with special storage conditions. The Radio Shuttle System is particularly effective when your logistics center needs to rapidly and efficiently supply a wide range of different businesses;Key Features and Benefits:
Maximized Storage Density: The radio shuttle system increases storage density by utilizing deep lanes, allowing you to store multiple pallets in a compact area. This maximizes the use of vertical and horizontal space, making it ideal for warehouses with limited floor space.
Faster and More Efficient Operations: With the motorized shuttle handling the movement of pallets, the system reduces manual labor and increases picking speed. Forklift operators only need to load and unload the shuttle, speeding up the overall process.
Increased Throughput: The radio shuttle operates faster than manual systems, improving overall throughput. It can quickly move pallets from deep within the racking lanes to the front for easy retrieval.
Reduced Labor Costs: By automating the process of pallet movement within the system, radio shuttle pallet racking reduces the need for manual labor, lowering operational costs and increasing warehouse efficiency.
Improved Safety: With less forklift traffic and manual pallet handling, the radio shuttle system reduces the risk of accidents and injuries in the warehouse.
Optimized Space Utilization: The system's ability to store pallets in deep lanes with minimal aisle space makes it perfect for businesses with limited space but high storage demands.
Product Parameters

Material	High-strength steel or powder-coated steel
Load Capacity	Typically 1,000 kg to 1,500 kg per pallet, depending on design
Rack Height	Customizable to suit warehouse height, typically up to 12 meters
Rack Depth	Can accommodate up to 6 pallets deep, customizable
Shuttle Speed	Varies by system configuration, typically 1.5 meters per second
Lane Width	Typically 1,000mm to 1,200mm, adjustable based on pallet size
Shuttle Type	Battery-operated, motorized shuttle with wireless radio control
Aisle Width	Narrow aisles (typically 1.5m to 3m) for maximizing storage space
Forklift Type	Standard reach trucks, counterbalance forklifts, or narrow-aisle trucks
Control System	Wireless radio communication for shuttle movement and pallet positioning
Inventory Management	Compatible with both LIFO and FIFO inventory management methods
Safety Features	Anti-collision sensors, safety barriers, and emergency stop features
Temperature Range	Suitable for both ambient and cold storage applications (-20°C to 0°C)
Finish	Powder-coated or galvanized steel for long-lasting durability
Battery	Rechargeable battery for shuttle, with long operational life and quick charging

Product Display Company Profile
Packaging & Shipping:Packaged securely for safe transit.
Global shipping available. Lead time: 5 days (based on order quantity).
We offer customized design services, requiring the following rack factors:
Weight of goods (including pallet or container)
Dimensions of pallet and goods (Width x Depth x Height)
Fork direction at the pallet's entrance
Storage area (Length, Width, Height)
Forklift type and parameters (including lift height and turning radius)
Quantity of storage goods and storage requirements.
Services:
Our complimentary services include consultations and sample CAD layouts
for your proposed rack system. Feel free to explore options by reviewing
the racking systems either on-site or at our main office.
Secure the racking system you require at an unbeatable price. FAQ1. Q: Are you manufacture or trading company?A: We are manufacture. Our factory has been specializing in warehouse racks and different,kinds of display stands since 2001.2. Q: Where is your factory? Can I visit ?A: Our factory is located in Jiangmen, Guangdong. You are warmly welcome to visit whenever you are available.3. Q: What is your delivery time?A: In general, within 15 days. It also depends on the order quantity and shelving design.4. Q: What is the term of payment?A: Payment terms: 30% of deposit upon signing the PI, and balance will be cleared by T/T before delivery.5. Q: Are samples available?A:Yes, samples are available at any time. We charge some sample cost and will return it during the next order.6. Q: How could Iinstall the racks?A: We provide detailed install instruction for every type of shelf. If needed,we can also ask engineers to teach you for free.7. Q: Could you produce according to customers' design?A: Sure, we have very rich experience in customizing shelves.8. Q: Do you produce shelf with different kinds of materials?A: Our products are mainly made of metal.9. Q: What are main rack and add on rack?A: The difference between these two kinds of racks is upright. Main rack is the start rack with 2 uprights and add on rack is the continue rack with only 1 upright. For example, if there are 15 wall racks against the wall, the structure will be 1 main rack 14 add on racks.10.Q: What is the manner of packing?A: Generally, shelves are flat packed by air bubble film/ film in standard export cartons. Other packing like wooden box are available to clients' requirement.

---
