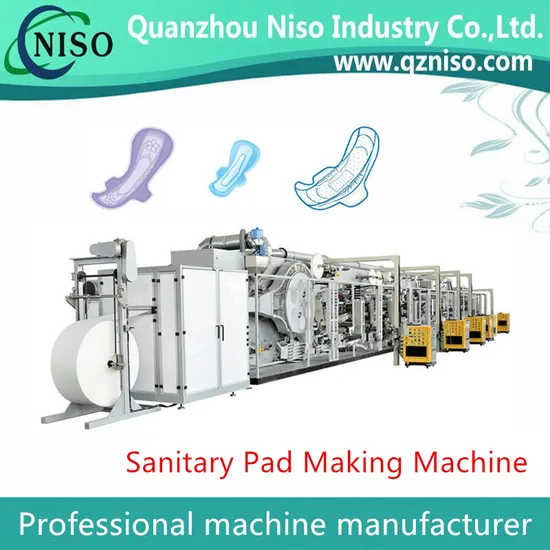

Secondhand Sanitary Napkin Machine From China

Product Description

Secondhand Sanitary Napkin Machine From China
Main Technical Parameter

Designed production speed	800pcs/min
Stable production speed	600pcs/min
Machine power	three-phase five-wire (380V, 50HZ)
Machine capacity	about 200KW (exclude hot melt applicators and air compressor)
Machine size	18.0m×7.0m×3.5m (L×W×H)
Machine weight	about 50T (whole production line )
Air pressure:	0.6-0.9Mpa

Quick Details
1. Condition: Used
2. Product Type: Sanitary Napkin Machine
3. Processing Type: Pulp Molding Machine
4. Place of Origin: Fujian, China (Mainland)
5. Model Number: HY600 -HSV
6. Voltage: 380V, 50HZ
7. Power(W): 160KW
8. Dimension(L*W*H): 18m* 7m* 3.5m
9. Weight: 50T
10. Certification: CE
11. Warranty: 1 year
12 .After-sales Service Provided: Engineers available to service machinery overseas
13. machine type: Specialized sanitary napkin machine made in China
14. stable production speed: 800pcs/min
15. sizes of baby diaper: 230mm, 280mm, 320mm, or up to buyer
16. installment power: about 120KW
17. air pressure: 1000L/min,6-8BAR
18. rate of finished products: ≥98%(exclude the defective products caused by material joint
19. efficiency range: ≥88%
20. working direction of machine: up to buyer
21. machine operator: 1-2
Main Function Features

1. Servo motors or automatic driving with PLC control and touch screen;

2. High-speed teeth-like crusher;

3. Web-wheel molding;

4. SAP auto adding with amount control;

5. Servo unwinding, auto-tension control and auto splicing for raw material;

6. Auto reject for wasted & rejected product, auto detect & alarm for material exhausted;

7. Phase adjusting during running without stop;

8. Product auto counting & output in line.
Other sanitary napkin machine models for your reference

Model Type	Semi-Automatic	Frequency	Half-Servo	Full-Servo
Model Number	HY400	HY600-FC	HY600-HSV	Hy800-SV
Production Speed	400pcs/min	600pcs/min	600pcs/min	800pcs/min
Designed Speed	600pcs/min	800pcs/min	800pcs/min	1000pcs/min

Raw materials needed for producing sanitary napkins
1. Fluff type with quick easy package: pulp + Hydrophilic nonwoven (perforated nonwoven) + SAP paper + PE film + SAP + hot melt adhesive + release paper + PE packing film + Easy tape
2. Ultra-thin with quick easy package: Hydrophilic nonwoven (perforated nonwoven) + SAP paper + PE film + hot melt adhesive + air laid paper + PE packing film + Easy tape
Machine Production Workshop
Our Services
Excellent After-sales service
1. You can send technicians to our factory to learn operating the machine before delivering
machine for 1-2 month.
2.When the machine arrive at your workshop, we will send technician to your workshop to
install, test the machine and train your workers
.
3. If you need 1-3 Chinese technicians to work for you, we can help you to find them.
4. Life-long after-sales service for machines.
Why choose us?
1. We are Chinese Listed company since Nov.30th, 2012, 035007, we have ISO certificate, certificate of utility model patent, patent for invention for machine etc, you can trust we are your best supplier.
2.We can do full support for your complete project, from machine's manufacturing and
installment, supplying raw materials, designing your factory layout, workers training to
final production.
3.We have served customers from over 100 countries in the world till now.
4.We can offer you very good machines and service at good price. (we have our own parts processing workshop)
5.We are factory manufacturer, not trading company.
Packing & Delivery
Packing: Standard export package:pant anti-rust oil on machine, wrap machine with plastic film, then put machine in seaworthy wooden cases.
Delivery: 20 days after receiving the deposit
Any questions welcome to contact me thanks!
contact person:zoe

---
