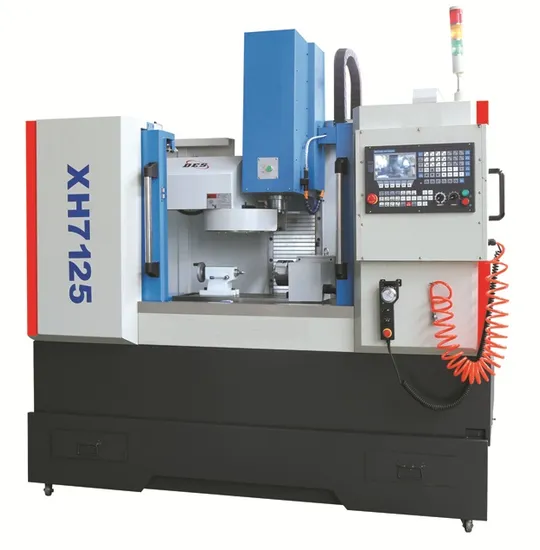

XH7125 Precision Full Cover CNC Milling Machine for Metal Machining

US$9,800.00
1 set
US$9,600.00
2+ set

Basic Info.

Model NO.
XH7125
Structure
Vertical CNC Milling Machine
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
CNC
Automatic Grade
Automatic
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Worktable Size
900*250mm
X Axis Travel
450mm
Y Axis Travel
260mm
Z Axis Travel
380mm
Main Power
2.2kw
Spindle Speed
6000rpm
Transport Package
Poly-Wood Case
Specification
CE, SGS, ISO
Trademark
WMT
Origin
Chizhou, Anhui
HS Code
845961900
Production Capacity
20 Sets Per Month

Packaging & Delivery

Package Size
120.00cm * 150.00cm * 210.00cm
Package Gross Weight
1350.000kg

Product Description

Features:
CNC milling machine:
BT30/NT30, servo motor
Function:drilling , tapping, chamfering, bearing, milling face thread, handle and tower
Aesthetic and elegant modeling.
High efficiency for automatic knife changing.
X/Y/Z axes adopt rectangular guide way,
The spindle frame is used in the lathe pedestal to increase its stability and stiffness.
The machine has a good rigidity and strong vibration resistance.
It has a good chip removal performance.
Main Technical Data:

Specification
XH7125
Main motor power 2.2kw
Highest spindle speed 6000rpm
X/Y/Z to the motor torque 6/6/7.7N.M
The spindle taper hole BT30(optional:ISO40)
Table size 900x250mm
X/Y/Z axis travel 450x260x380mm
Distance between spindle center and surface column 330mm
The distance of spindle end face to the workbench 50-430mm
Rapid movement(X/Y/Z) 6/5/4m/min
T-slot 3/14/35
Table load 250kgs
Positioning accuracy 0.02mm
Repeat posotioning accuracy 0.01mm
Machine tool appearance size(L x W x H) 1200x1500x2100mm
Net.Weight 1300kgs

Standard Accessories:
servo motor, casting iron machine stand,
10pcs tool magazine
spindle speed:8000rpm, servo spindle,
pneumatic tool chaing, auto lubrication system,
coolant system, complete cover type

Guarantee Terms:Complete service by free of charge within 13 months after B/L date Technical service will be given forever at any time. Any questions during operation, can contact us freely by email, or contact on line by Skype, WhatsApp, etc. Also can talk face to face during fairs. You will get response within 20 hours.
