20 Cubic to 50 Cubic Pressure Vessle LPG Storage Tank

Product Description

20 cubic to 50 cubic pressure vessle lpg storage tank

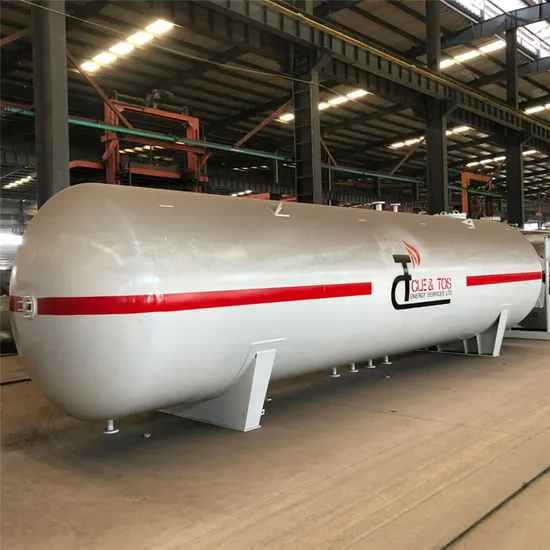

Product			35m3 LPG storage tank( propane)
Nominal Diameter			2400mm
Designed Pressure			1.77MPa
Max pressure			1.61Mpa
Whole Dimension			7508x2428x3018mm
Side thickness			14mm
Bottom thickness			14mm
Curb weight:			7710kg
Loading weight			14700kg
Total weight			22410kg
Filling factor			0.95
Medium density			420kg/m3
Designed Temperature			50ºC
Tank material			Q345R
Corrosion			2mm
Heating testing			PWHT(bulk heat treatment)
Water Testing			2.22 Mpa
Hermetic testing			1.77 Mpa
Safety spare part			Equipment with Safety Valve, Liquid gage, Pressure gage, Temperature gage,
Manufacturer Standard			GB150 Steel pressure vessel, pressure vessel safety technology to monitor the procedures

Liquefied petroleum gas storage tanks include compressed gas or liquefied gas storage tanks. Liquefied petroleum gas storage tanks can be divided into fixed volume storage tanks and active volume storage tanks according to the volume change of containers. Large fixed volume LPG storage tanks It is made into a spherical shape, and the small one is made into a cylindrical shape. The active volume storage tank is also called the low-pressure gas storage tank. It is commonly called the gas cabinet. Its geometric volume can be changed, tightly sealed, no gas leakage, and the balance of air pressure and the adjustment of gas supply. The pressure generally does not exceed 60MPa.
Our Factory
Products Display
Cooperative Partner
Qualification Certificate
Packaging & Shipping
Cooperative Brand
FAQ
1.You are factory or trading Company?
Yes, we are oversea sales department of Chengli automobile. And you are always welcomed to visit our factory.
2.Could your company modify the standard product depends on my request?
Yes. Our company is specialized in researching and designing various of special purpose vehicle and spare parts. We can provide any product according to your demand.
3. Could your company totally customize products for me?
We can provide the customized-designing product meeting with any of your demand.
4. Could you provide certification that we need?
We can provide various certifications associate with trailer and truck. Such as DOT, ADR, SASO and so on.

5. How long could we receive our goods?
It depends on the product that you have ordered. If the goods are prepared, we will deliver your goods as soon as possible.
6. How about the after-sale service?
We can provide you the technical support to guide you repaire your product. And we will also send original spare parts free of charge by air. If you have special need, we can let our engineer to help you in person
