Vacuum Tube Collector Non Pressure Compact Solar Water Heater Home Water Heating Solar Water Heater System Price

Product Description

Vacuum Tube Collector Non Pressure Compact Solar Water Heater Home Water Heating Solar Water Heater System Price
Product Introduction Open water tank for heat storage, closed coil for heat exchange and water intake. Sola sunshine 20 second rapid heat exchange technology is adopted. The hot water is ready to use, and the water quality is fresh.The hot water pressure comes from the municipal cold water pressure, which matches with the cold water. It is simple to adjust the water temperature. The water pressure is surging, the water volume is sufficient, and the use experience is good. Product Parameters

product name	300L Non pressurized Vacuum tube solar water heater
Model	PFSLY-300/25-5818
Types of solar water heaters	non pressurized
collector tube	All glass vacuum solar collector tubes
Absorbing coating	interference coating
Collector tube size	Φ58mm outer diamater*1800m length
Tank type	Open type
Inner tank material	0.4mm SUS304 stainless steel
Inner tank diameter	Φ380mm
Outer tank material	0.4mm color galvanized steel plate
Outer tank size	Φ480mm
Insulation material	50mm polyurethane foam
Cold/hot water port	DN20/DN25
Product Weight	115kg
Requirements for roof loads	100-120kg/m2
Number of collector tubes	25 sticks
Aperture area	3.6 m2
water tank capacity	235L
total water capacity	300L
full water weight	415kg
Product Size	Length B (mm) 2300
	Width A (mm) 2130
collector inclination	5°~30°
Min. outdoor temperature	-40ºC
Electric heating (option)	220V50Hz/110v60hz, 1500W

Our Advantages

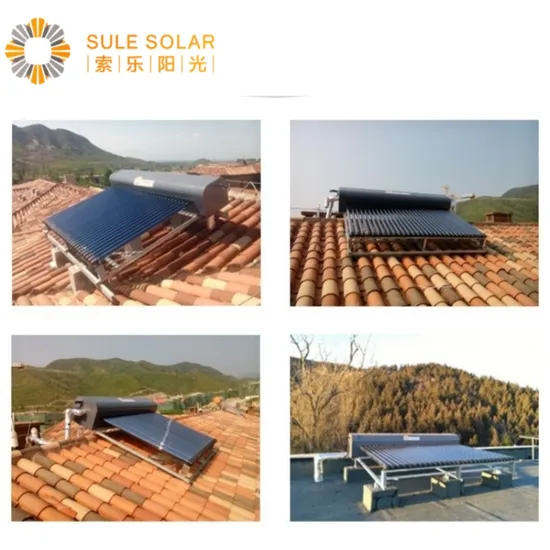

Detailed Photos
Our Factory Certifications Packing & Shipping FAQ 1. who are we?
We are based in Beijing, China, start from 2018,sell to Mid East(22.00%),Domestic Market(20.00%),Africa(16.00%),Eastern Asia(8.00%),Western Europe(7.00%),Eastern Europe(6.00%),Southeast Asia(6.00%),Oceania(5.00%),Northern Europe(5.00%),South Asia(3.00%),Southern Europe(2.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;
3.what can you buy from us?
Solar Water Heater,Solar Panel,Vacuum Tubes,PV System,Solar Light
4. why should you buy from us not from other suppliers?
20 years' experience in solar thermal and PV industry. Supply total solar solution for domestic,commercial and industrial application. Professional R&D,techincal,manufacture and quality control system. Professional export and service team.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,EXW;
ccepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese.

---
