US$21,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Usage
Special Excavator, Marine Excavator, Mining Excavator, GM Excavator
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
0.1~0.5m³
Certification
CE, ISO9001: 2000
Bucket Digging Force
27.6kN
Transport Package
Nude Package
Specification
4960x1740x2550mm
Production Capacity
500pieces
Packaging & Delivery
Package Size
81.10cm * 30.00cm * 35.08cm
Package Gross Weight
7500.000kg
Product Description

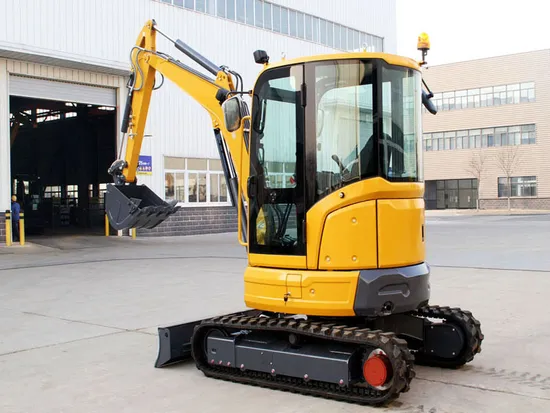

3.5 Tons Chinese Hydraulic Mini Excavator Xe35u
XE35U hydraulic excavator cooperates with multi-functional working tools to complete tasks such as excavation, loading,leveling,trenching, crushing, drilling, pinching, lifting, etc. It is widely used in the construction and production of hydropower,transportation, municipal, garden, farmland transformation, oil pipelines, etc.
Model
| Metric unit
| XE35U
|
Operating weight
| kg
| 4200
|
Bucket capacity
| m3
| 0.11
|
Engine
| Output power
| kW/ r/min
| 21.6/2400
|
torque/speed
| N.m
| 107.2/1444
|
Displacement
| L
| 1.642
|
Main performance
| Travel speed(H/L)
| km/h
| 3.6/2.2
|
Gradeability
| %
| 58
|
Rotating speed
| r/min
| 8.5
|
Ground pressure
| kPa
| 36.6
|
Bucket digging force
| kN
| 24.6
|
Arm crowd force
| kN
| 17.8
|
Appearance size
| Overall length
| mm
| 4960
|
Overall width
| mm
| 1740
|
Overall height
| mm
| 2535
|
Width of platform
| mm
| 1585
|
Length of crawler
| mm
| 2220
|
Overall width of chassis
| mm
| 1740
|
Width of crawler
| mm
| 300
|
Track length on ground
| mm
| 1440
|
Crawler gauge
| mm
| 1721
|
Clearance under counterweight
| mm
| 587
|
Min. ground clearance
| mm
| 297
|
Min. tail swing radius
| mm
| 870
|
Working scope
| Max. digging height
| mm
| 5215
|
Max. dumping height
| mm
| 3760
|
Max. digging depth
| mm
| 3060
|
Max. vertical wall digging depth
| mm
| 2260
|
Max. digging reach
| mm
| 5415
|
Min. swing radius
| mm
| 2170
|
>>
