200m Deep Portable Hydraulic Water Well Core Drilling Rig for Sale

Product Description

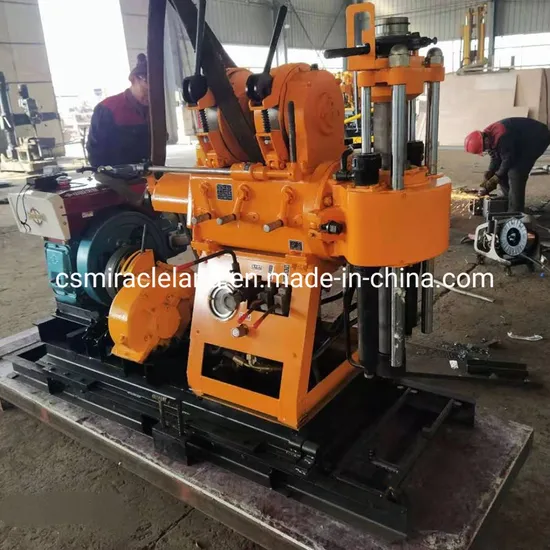

XY-200 High Performance Water Well Drilling Rig:
1, this drill for the high-speed drilling machine is suitable for the exploration, water well drilling, road and building exploration, etc.
2, can be selected according to the underlying different alloy, diamond, compact drill for drilling, etc.
3. The rig using a mechanical drive, rotary structure, rotary torque, long life;
4. Four groups of vertical shaft box bearings positioning gyrator has sufficient rigidity response to the gravel layer, gravel layer, and the complex geological conditions;
5. The machine adopts the taper of the national patent clutch, with a large torque, easy to operate, the salient features of the maintenance-free;
6. The machine equipped with a flow rate of 160L/min one mud pump, with cost savings, compact, mobile and lightweight;
7. Rig bulk portfolio, the whole removable nature, transportation, relocation convenience, and not subject to topography constraints;
8. Rig manipulation, the use of performance, easy maintenance, less investment and quick.
The technical parameters of the XY-200 water well drilling rig:

XY-200 Drilling Rig Parameters
Drilling depth	200m
The largest hole diameter	φ75-φ325mm
Final hole diameter	75mm
Active drill pipe	53/59*4200mm
Drill rod diameter	φ42-φ60mm
Drilling inclination	90°~75°
Supporting power (diesel engine)	16.18KW
Structure weight / size	2.7*0.9*1.5
Vertical axis
Vertical axis speed	64/128/287/557r/min
Vertical axis travel	450mm
Hoist
Single rope lift force	2500
Single rope to enhance speed	0.12-0.95m/s
Reel diameter	φ140mm
Rope diameter	φ12.5mm
Rope capacity	35m

---
