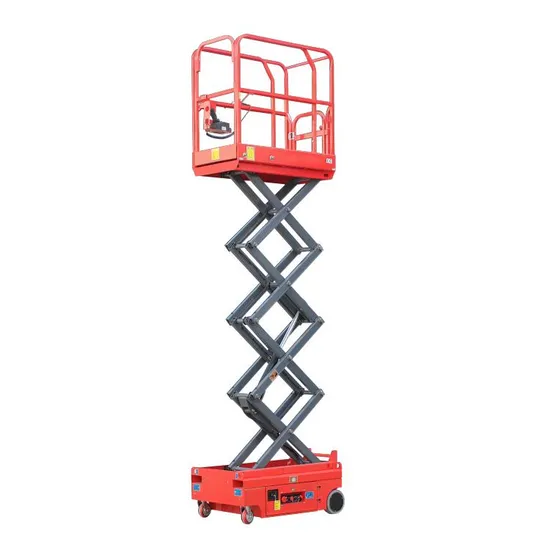

2024 Vift Manufacturer Self-Propelled Scissor Lift 3m 4m Electric Aerial Work Platform

Product Description

Company Profile
VIFT forklift, founded in 2010, is a Shanghai-based leading manufacturer specializing for handing equipment from product design, production, to after-sales services for material handling equipment suppliers worldwide.We offer a wide range of products to fulfil the individual need of every customer from occasional operations to multi-shift applications in warehouse or distribution centers at high frequency level. At VIFT Forklift, we commit to producing the right truck for each application.
Product Parameters

JCPT Series Self-propelled Scissor Lift
Model	JCPT0307	JCPT0407
Loading Capacity	240kg	240kg
Max. Platform Height	3m	4m
Occupants	1	1
Platform Dimension	1.15×0.6m	1.15×0.6m
Overall Length	1.32m	1.32m
Overall Width	0.76m	0.76m
Overall Height	1.83m	1.92m
Platform Extension	0.55m	0.55m
Extension Load	100kg	100kg
Up/Down Speed	31/22sec	34/25sec
Turning Radius	0	0
Maximum Slope	1.5°/2°	1.5°/2°
Drive Tyres	Φ230×80mm	Φ230×80mm
Gradeability	25%	25%
Wheel Base	1.0m	1.0m
Travel Speed(Stowed)	4km/h	4km/h
Travel Speed(Raised)	0.5km/h	0.5km/h
Battery	2×12v/100Ah	2×12v/100Ah
Lifting Motor	24v/1.3kw	24v/1.3kw
Drive Motors	24v/0.5kw	24v/0.5kw
Charger	24v/15A	24v/15A
Operating Weight	630kg	660kg

Detailed Photos


Certifications
Customer photos
FAQ
Q1: How long is the Warranty for VIFT product?
A1: VIFT provides 12 months or 1000 hours for the whole machine from on board time.
Q2: How about the delivery time?
A2: Usually VIFT producing time is 15- 20 days after we receive the advanced payment. For some standard products, we may have stock and could delivery immediately.
Q3: How about the continuous working time for the electric series forklifts ? And How long time to charge the battery full ?
A3: VIFT battery continuous working time is around 3-6 hours (working time depend on battery volume).It needs usually 8 - 12 hours to charge the battery, VIFT's charger is automatic, after the battery is full, it will stop working automatically.
Q4: Can VIFT provide customized products? OEM products or ODM products?
A4: Yes, VIFT can provide customized products per your request, both OEM and ODM are acceptable. We do a lots of non-standard products, welcome your special reqeust.
Q5: Could we request our own color for the products?
A5: Yes, of course, you just need to offer us the RAL code.

---
