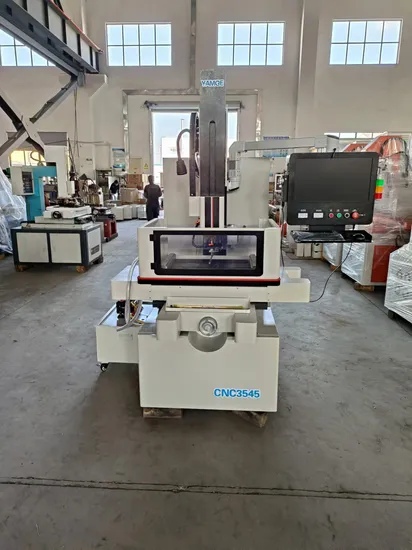

Zhenyue Best Selling Automatic Small Hole Machine

Product Description

Main feature
★ Resin sand precision casting of the whole bed, the service life extended to more than 10 years.
★ Professional linear guide, full stroke support design, processing will not deviate because of the workbench hanging, precision maintain more lasting.
★ Hanjiang C3 precision ball screw
★XY motor with large inertia AC servo motor, further improve the machining accuracy, advanced damping protection, no need to reverse gap compensation;
★ Mike full 6-axis control system, the CNC system uses encoder/player architecture, CNC encoder to achieve CNC process database files, CAD.G code and other engineering file management.
★ Z-axis motor using 818 DC servo motor, lifting speed is fast. High sensitivity.
★ National patent rotating head
★ Advanced modular design circuit system, the whole machine structure is compact, reasonable layout, strong anti-interference, good reliability, environmental protection, energy saving, in line with ergonomic standards, emphasizing easy human standards.
★ High performance, high power pulse power supply, effectively achieve high efficiency, microhole processing, and can efficiently process all kinds of die steel, aluminum, copper, aluminum alloy, titanium alloy, carbide, conductive ceramics, superconducting thermal materials.
★ High standard industrial control host and anti-interference 15.3 inch touch screen.

Main parameter	CNCCK450
Electrode servo stroke (mm)	360
Table size (mm)	650/1030
X*Y*Z stroke (mm)	630×800×300
Machine dimensions (mm)	2400/2250/1950
Maximum punch thickness (mm)	300mm
Maximum load (kg)	200
Maximum piercing speed (mm/min)	30-60mm according to materials
Positioning accuracy (mm)	≤±0.02(100mm)
Table minimum equivalent movement (mm)	0.001
Punch diameter (mm)	φ0.15-φ3.0
Peak machining current (A)	6(Note: Processing peak current 1-30)
Operating voltage (V)	380V
Pulse width (9 stops adjustable)(μs)	00-9
The pulse interval is continuously adjustable	1:1-1:8(Pulse width/ Interpulse)
Power supply operating voltage	380Vac±5%50Hz
Machine power (KVA)	≤3
Machine weight (kg)	900

Zhenyue Group is a specialized company engaging in the Research, Development ,Production and Sales of Mechanical and electrical integrated products.
There are mainly five product series Including: CNC Miller, Machining Center, CNC wire cutting Machine, CNC Electrical Impulse.
In recent years Zhenyue has got honours in succession, e.g."One of Top Hundred Key Enterprises in Ningbo", "AAA Credit Company in Ningbo", ETC.
Zhenyue products won HI-tech Prize and New Product Prize of the Municipal ,Provincial and State Level. The total construction scale of Zhengyue reaches to 66,000 square meters. With a first-class managing center ,it now has over 500 workers and staffs, among which 30% are R&D personnel. This R&D team allows Zhenyue to develop new products with the worlds most advanced technology. After-Sale Service :
1. Technical files service provided.
2. On-site training service provided.
3. Free training course at our plant.
4. Technical support online service provided.
5. We will provide the consumable parts at an agency price when you need replacement. Ningbo Zhenyue Machinery Co.,Ltd.
ADD: Room 507-508, No.39 Lane 158, Huancheng West Road, Ningbo China.
Zip Code:315000
Contact Person: Jessica

---
