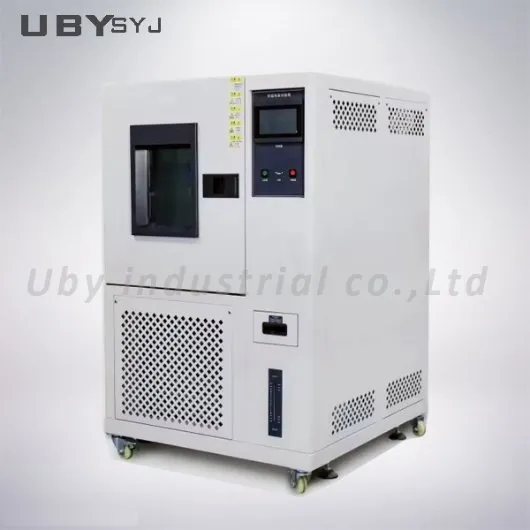

New Energy Sources Temperature Humidity Chamber Simulate Environment Temp Humidity Control Chamber Climatic or Climate Test Chambers

Product Description

New Energy Sources Temperature Humidity Chamber Simulate Environment Temp Humidity Control Chamber climatic or climate test chambers
Design Standard:
GB2423/T5170/10586/10592, IEC68,GJB150,JIS C60068, ASTM D4714, CNS3625/12565/12566
Uses:
This equipment can simulate different environment condition. It's appropriate for testing material performance, such as resist heat, resist dry,resist humidity and resist cold. That can define performance of material.
Specification:

Model		UP-6195
Inner size W×H×D(mm)		500*400*400 500*600*500 600*850*800 100*100*80 100*100*100
Outside size W×H×D(mm)		92*138*108 102*146*116 102*162*126 113*172*148 158*195*148 158*193*168
Inner chamber volume(V)		80L 150L 225L 408L 800L 1000L
Temperature and humidity Controll range		-20ºC~150ºC -40ºC~150ºC -70ºC~150ºC RH20%-98%
Function	Temperature and humidty fluctuation	±0.5ºC;±2.5%RH
	Temperature and humidity deviation	±0.5ºC-±2ºC;±3%RH(>75%RH); ±5%RH(≤75%RH)
	Controller resolution	±0.3ºC;±2.5%RH
	Controller brand	Korea TEMI880
	Heating Time (RT-HT)ºC/min	100		150
		40		50
	Cooling Time (RT-LT)ºC/min	-20	-40	-60	-70
		40	50	55	80
Power supply KW		4.0	6.0	6.0	6.0
Material	Inner material	SUS 304# steel plate
	Outside material	SUS 304# steel plate(surface disposing)
	Thermal insulation material	Thermostability high density chlorine formic acid foam insulator material
System wind pathround-robin mode		centrifugal fan-broadband enforce circulation
Refrigeration way		Single stage compression refrigeration
Refrigerator		whole sealing piston France Taikang brand Compressor
Freezing fluid		R4O4A or USA Dupont environmental protection refrigerant(R23+R404)
Condensation way		forced air cooling or water-cooling
Heater		Nichrome heating wire heating
Humidifier		Semi-enclosed steam humidification
Water-provide way		full-automatic periodical feeding
Standard configuration		1 Observe window(double-deck cavity toughened glass),1 50mm test hole in the left,1 PL inner chamber lamp,2clapboards, 1 bag of wet and dry bulb,3 fuses, 1 power line.
Safety device		Non- fuse-switchcompressor overload, refrigerant high low voltage,over-humidity and temperature protection,Protection switch,fuse stoppage warning system
Power		1φ 220V AC±10% 50/60Hz 3φ 380V AC±10% 50/60Hz

Our service:
During the whole business process, we offer a Consultative Selling services.
1)Customer inquiry process:
Discussing testing requirements and technical details, suggested suitable products to customer to confirm.
Then quote the most suitable price according to customer requirements.
2)Specifications customize process:
Drawing related drawings to confirm with customer for customized requirements. Offer reference photos to show the appearance of the product. Then, confirm the final solution and confirm the final price with the customer.
3)Production and delivery process:
We will produce the machines according to confirmed PO requirements. Offering photos to show the production process.
After finishing production, offer photos to the customer to confirm again with the machine. Then do your own factory calibration or third-party calibration(as per customer requirements). Check and test all the details and then arrange packing.
Delivering the products is confirmed shipping time and informed the customer.
4)Installation and after-sale service:
Defines installing those products in the field and providing after-sales support.
FAQ:
1. Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are the one of professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment... in China. Every machine purchased from our factory has 12 month warranty after shipment. Generally, we offer 12 months for FREE maintenance. while considering sea transportation, we can extend 2 months for our customers.
Moreover, If your machine doesn't work, you can send us an e-mail or call us we will try our best to find the problem through our conversation or by video chat if necessary. Once we have confirmed the problem, the solution will be offered within 24 to 48 hours.
2. What about the delivery term?
For our standard machine which means normal machines, If we have stock in the warehouse, is 3-7 working days;
If there is no stock, normally, the delivery time is 15-20 working days after payment is received;
If you are in urgent need, we will make a special arrangement for you.
3. Do you accept customization services? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines but also customized machines according to your requirements. And we can also put your logo on the machine which means we offer OEM and ODM service.
4. How can I install and use the machine?
Once you have ordered the testing machines from us, we will send you the operation manual or video in English version through Email.
Most of our machine is shipped with a whole part, which means it is already installed, you just need to connect the power cable and start to use it. And if it's necessary, we can also assist you to install your machine on-site.

---
