Durable Machine Tool for Metalworking Z3050X16 Radial Drill

Product Description

Product Description

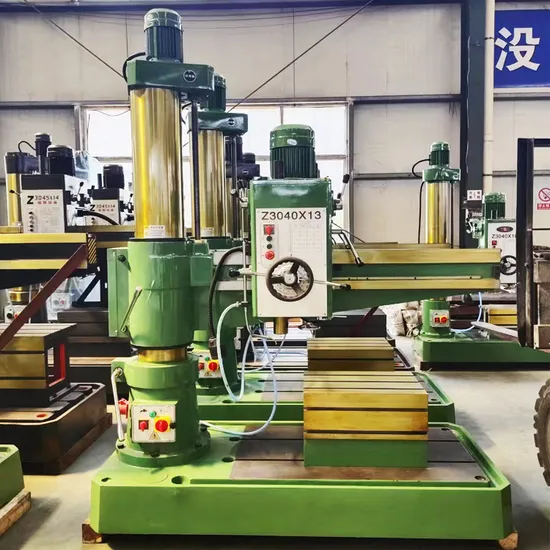

Z3040X13 Z3040×16 Z3050 Z3063 Z3080 Radial Drilling Machine FEATURES:
1. Experience unparalleled efficiency with our hydraulic gear-change structure, perfectly engineered to minimize subsidiary time and maximize productivity.
2. Discover the ease of operation with a single handle that effortlessly controls forward rotation, braking, shifting, and neutral gear functions of the spindle, offering supreme convenience.
3. Embrace reliability with our hydraulic-driven rhombic block, expertly governing the clamp structures of the headstock, radial arm, and columns, ensuring steadfast performance.
4. Equipped with superior safety and protective installations, this machine guarantees sound operation and an external column for added security.
5. Our meticulous design and manufacturing processes incorporate lines of efficient measures to uphold unmatched precision and extend the machine's longevity, promising years of reliable service.
6. The machine's electrical components are designed for maximum safety, durability, and easy maintenance, safeguarding both human life and operational continuity.
Built for stability, the drill's substantial weight and robust construction ensure seamless, vibration-free operation, enhancing precision and user experience.The versatile cube table allows for effortless workpiece adjustment, simplifying the setup and enhancing operational efficiency.Experience effortless height adjustment of the arm, powered by an efficient motor for precise and convenient operation.A strategically positioned control panel on the drill's front enhances performance, ensuring ergonomic operation and user-friendly functionality.Enjoy seamless, precise arm movement with the polished column surface, designed for easy and unrestrained navigation.The drill features manual blocking for both the head and arm, allowing secure and stable positioning during operation.Benefit from an extensive speed range, engineered for precise, rapid processing, catering to diverse drilling needs.
Product Parameters

Modle	Unit	Z3032×10	Z3040×13	Z3050X16/1	Z3063x20/1	Z3080x25
Table SIZE (L*W*H)	mm	630X500X500			800X630X500	1000X800X560
Dimensions of Box Table	mm	630X500			800X630	1000X800
T-slot	No.	5	5	5	7	7
T Distance between two adjacent T-slots		150
T Width of T-slot		22
Dimensions of base	mm		2400X1000X200		2900X1250X250	3530X1400X300
Working surface of base	mm		1560X830		1950X1080	1200X2380
T-slot/Width/Distance		4/28/180			4/28/250	4/28/276
Distance from spindle axis to column	mm	360-1000	360 - 1300	350-1600	450-2000	500-2500
Distance from spindle nose to table surface	mm	140-1100	260 - 1300	320-1220	400-1600	550-2000
spindle head travel(horizontal)	mm	1000	1100	1250	1600	2000
Spindle taper		MT4	MT4	Morse No.5	Morse No.5	Morse No.6
Quill travel	mm	220/280		315	400	450
Max.drilling diameter	mm	35	40	50	63	80
Speed Range /steps	rpm	75-1220	28-1200	25-2000(16)	20-1600(16)	16-1250(16)
Max.output torque of spindle	N.m		500	500	600	1568
Spindle feed/steps	mm/r/step	0.1,0.16,0.25	0.1-0.25	0.04-3.2/16	0.04-3.2/16	0.04-3.2/16
Spindle motor power	kW	4			5.5	7.5
Elevating motor	kW	1.5	1.1	1.5	2.2	3
Coolant pump	kW	0.09	0.09	0.09	0.125	0.125
Clamping type		hydraulic
Overall dimension (L*W*H)	mm	1500×705×2050	1600×700×2050	2500X1070X2840	3080X1250X3400	3730X1400X4025
Package dimension (L*W*H)	cm	158×75×213	167×77×217	258X111X270	318X142X309	380×147×410
Net weight	kg	1100/1200	1500	3500	7000	11000

The radial drilling machine is an essential hole processing tool, adept at drilling, reaming, tapping, end face repair, and more. Distinguished by their clamping structures, they encompass hydraulic and mechanical types. Renowned for their user-friendly design, radial drills are versatile and ideally suited for single or batch production of large porous parts, making them a staple in general machining workshops.

Packaging & Shipping
Related products
Company Profile
Henan Rowdai Machinery Equipment Co., LTD Based in the vibrant city of Zhengzhou, Henan Province, we specialize in crafting precision machinery including CNC Machine Centers, Lathes, CNC Lathes, Milling Machines, CNC Milling Machines, Grinding Machines, and Band Saws. Our innovations serve key industries such as automotive, mold-making, construction machinery, aviation, high-speed railways, and energy. Proudly, our products have a strong foothold in numerous markets and are extensively exported across Europe, America, Australia, the Middle East, Southeast Asia, and Africa.
Our team, boasting over a decade of expertise with machine tools, is committed to customer satisfaction. Our professional inspectors ensure superior quality and after-sales service. What we promise:
1) Rigorous quality control ensuring premium standards
2) Highly competitive pricing structures that deliver exceptional value
3) Advanced technology products that set industry benchmarks
4) A top-notch professional team specializing in lifestyle consumer electronics
5) Seamless communication channels for effective interactions
6) Efficient OEM & ODM services tailored to your specifications

---
