Basic Info.
Processing Object
Mixed Feed
Processing Technics
Crushing-before-Mixing
Screen Mesh
With Screen Mesh
Grinding Equipment Type
Feed Hammer Mill
Bulking Machine Type
Single Screw Bulking Machine
Expanding Method
Dry Expansion
Applicable Materials Shape
Powder
Certificate of Origin
Issued by Chamber of Commerce
Payment Term
50% T/T as Deposit, The Balance Will Be Paid After
Transport Package
Wooden Box
Production Capacity
500sets/Year
Product Description
500KG/H Feed processing machine feed mixer feed mixing machine
1.Introduction
JB-series feed mixing machine complete set equipment is with vertical type which can be applied to process feedstuff in the farm.
This feed mixing machine is with developed design, rational construction, steady function, easy maintance, which combined mixing, winnowing, throwing together.
The madeup feedstuff is with uniform component, high effiency, little occupy, little labor, small dust, good sealed.

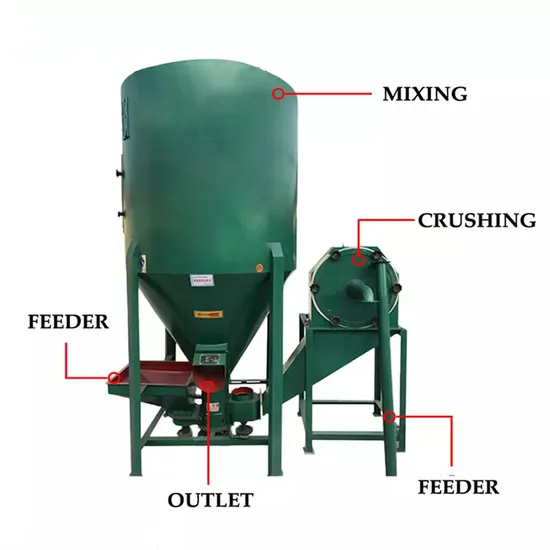

This feedstuff machine is combined with grinder and mixer.
Crushing part:
Feeding automatically or manually. When the material is sucked or conveyed to the crushing space, the material will be quickly crushed into powder or pellet with the continuously beat by the rolling pieces and gathering, bumping and beating of the crushing room, then it will enter into the A leaf box by the role of centrifuge air.
Mixing part:
When the pushing devices rotate, the material and B leaf chamber will forced feeding, when it was stepped up by rotating to the top of the box, it will form a mixing process of the materials were moved to the uniformity of dispersed atomized inside mixing of the materials up and down movements and the right rotation broadcast. The effect is ideal and very satisfactory.
3.Technical data:
| Model | JB-500 | JB-1000 | JB-1500 |
| Motor for crusher | 7.5kw | 7.5kw | 11kw |
| Motor for mixer | 3kw | 3kw | 4kw |
| Voltage | 380v 50hz 3 phases | 380v 50hz 3 phases | 380v 50hz 3 phases |
| Capacity | 500kg/batch | 1000kg/batch | 1500kg/batch |
| Weight | 200kg | 300kg | 450kg |
| Dimension | 1820*1100*2500mm | 1850*1250*2800mm | 2405*1400*2800mm |
4.More photos and details about the feed mixing machine
The high-power pure copper motor is powerful and can crush corn, soybean, grain, etc.
More details pictures:
Package
Parts
Our factory
>>
