Basic Info.
Structure
Radial Drilling Machine
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Precision
Normal Precision
Certification
GS, CE, RoHS, ISO 9001
Distance between spindle nose and table
25-870
Distance from spindle axis to column
315-815
Transport Package
Plywood Case with Steel Base
Specification
1800*700*2044
Production Capacity
50000 Pieces/Year
Packaging & Delivery
Package Size
1800.00cm * 700.00cm * 2044.00cm
Package Gross Weight
870.000kg
Product Description

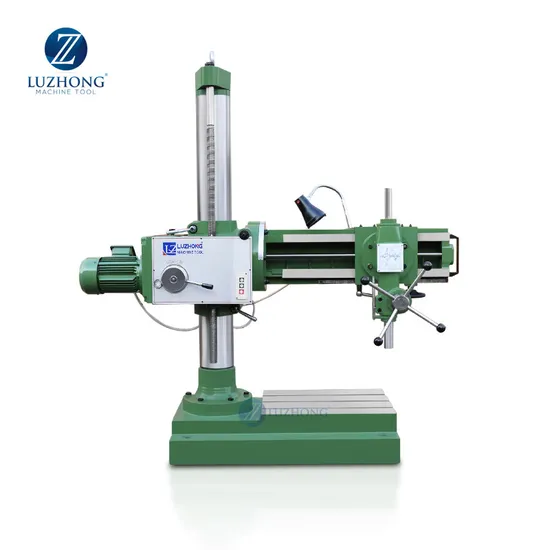

High Quality New Radial Arm Drilling Machine for Sale (Z3732)
Product Description
Product Parameters
Technical specifications:
| Specifications | Z3732 |
| Max.drilling diameter | 32mm |
| Spindle center to column surface | max | 815mm |
| min | 315mm |
| Spindle box horizontal movement | 500mm |
| Spindle nose to base | max | 870mm |
| min | 25mm |
| Spindle rotary angle | 360° |
| Spindle rotary angle round horizontal line perpendicular to the column | 360° |
| Spindle rotary angle round the column | 360° |
| Radial arm lifting speed | 1.51m/min |
| Spindle box travel in column | 845mm |
| Spindle taper | NO.4 |
| Spindle travel | 130mm |
| Spindle speed | 86.5,173 ,212.5,425,343,686,480,960r/min |
| Base table size | 710×500mm |
| Main motor power | 1.5kw/2.2kw |
| Machine weight(apporx) | 870kg |
| Machine size(L×W×H) | 1800×700×2044mm |
Detailed Photos
Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
>>
