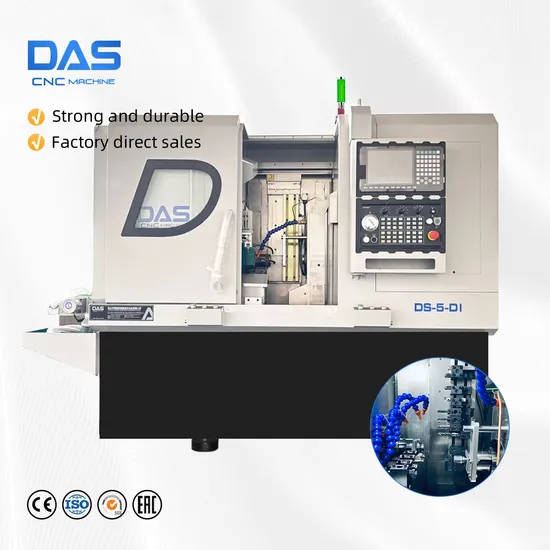

Das Ds-5-Di Double Spindle Gang Type Metal Turning Milling Machine CNC Lathe

Product Description

Product Description
Type: Dual spindle dual channel tool-traveling CNC Lathe
CNC or Not: CNC
Automatic Grade: Automatic
Control system: Syntec 21TB
Place of Origin: China (Mainland)
Model Number: DS-5-DI
Main axis speed(r/min): 0-4500
Max. Swing Diameter(mm): Φ400
Max Turning Diamerer(mm): Φ100
Max Turning Length(mm): 150
Spindle/sub spindle bore(mm): Φ46/Φ32
Spindle/sub spindle nose(mm):A2-4(36)/A2-4(25)
Max Through-rod material dia. of main spindle(mm): Φ34
X1/Z1 axis travel(mm):670/220
X/2Z2 axis travel(mm):600/270
X1/Z1 axis motor power(kw):1.3 /0.85
X2/Z2 axis motor power(kw):1.3 /0.85
Spindle/sub-spindle motor power(kw): 5.5/3.7
Square/round tool holder(mm): 16*16/ Φ20
Sub-spindle barrel clamp type: 161E push forward
Voltage: 220V/380V,50HZ
Power(kw): 17
Dimension(L*W*H)(mm): 2700*1700*2100
Machine Weight(kg): 4500

Type	DS-5-DI	DS-5-DII
Length of single feed	150 mm	150 mm
Control system	TaiWan Syntec	TaiWan Syntec
Spindle bore	Φ46/Φ32 mm	Φ46/Φ46 mm
Spindle speed	4500 r/min	4500 r/min
Spindle Gang type tool handle size	16 x 16	20 x 20
Spindle Gang type tool quantity	12 pcs	8 pcs

Detailed Photos
Company Profile
Certifications
Packaging & Shipping
FAQ
A:How can I choose the most suitable machines?
B: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model . You can also send us the products drawing ,we will choose the most suitable machines for you .
A: What's your main products of your company?
B: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe
A: Where is our factory located? How can I visit there?
B: Our factory is located in No.4-7 Xingye 3rd Road,Guangdong Industry Park,Chencun Town,Shunde District,Foshan City,Guangdong,China You are warmly welcomed to visit us.

A. What is your trade terms?
B: FOB, CFR and CIF all acceptable.

A: What's the Payment Terms ?
B : T/T ,30% initial payment when order ,70% balance payment before shipment

A: What's the MOQ?
B: 1 set .(Only some low cost machines will be more than 1 set )

---
