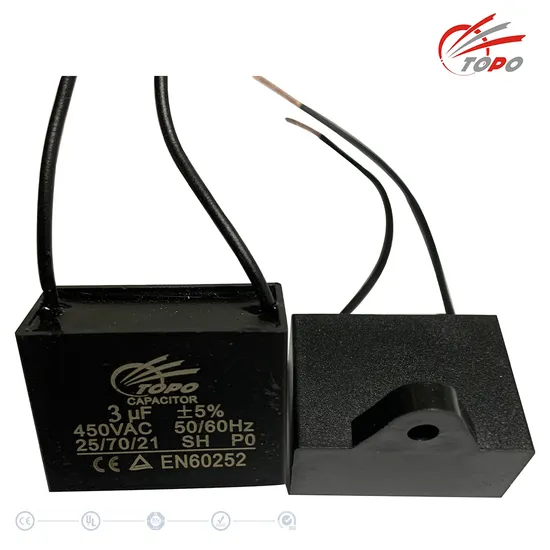

AC Motor Ceiling Fan Capacitor Price with Sh RoHS Polypropylene

Product Description

CBB61 Series Construction Dielectric: polypropylene film Plastic & Box can Dry type Features Self-heating properties Low dissipation factor P0 safety class to IEC 60252-1 High insulation resistance Typical applications For general sine wave applications, mainly as motor run capacitor Terminals Fast on Tinned Copper Wire

Technical data and specifications
Reference standards		IEC 60252-1
Safety class according IEC 60252-1		P0
Life expectancy to IEC 60252-1		3,000 h( C)~10,000 h(B)
Rated capacitance CR		0.5 µF~30 µF
Tolerance		±5%
Rated voltage VR		110VAC~500VAC
Rated frequency FR		50/60Hz
Maximum ratings
Maximum permissible votage Vmax		1.1*VR (VR=Rated voltage)
Maximum permissible current Imax		1.3*IR (IR=Rated current)
Test data
AC test voltage terminal to terminal VTT		2*VR, 2s (routine test)
		2*VR, 60s (type test)
Dissipation factor tan δ		≤0.002 (50Hz)
Climatic data
Climatic category		25/085/21 to IEC 60068-1
Lower category Tmin		-25ºC
Upper category Tmax		+85ºC
Damp heat test Ttest		21 days

Dimensions (mm)
Capacitance (uF/MFD)	250-300Vac			450-500Vac
	L	W	H	L	W	H
0.5	37	13	23	37	13	23
1	37	13	23	37	13	23
1.5	37	13	23	37	13	23
2	37	13	23	37	13	23
2.5	37	13	23	47	18	29
3	47	18	29	47	18	29
3.5	47	18	29	47	18	29
4	47	18	29	47	18	34
5	47	18	29	47	22	34
6	47	18	34	47	22	34
8	47	22	34	48	26	38
10	47	22	34	58	26	44
12	48	26	38	58	26	44
12.5	48	26	38	58	26	44
14	48	26	38	58	26	44
15	48	26	38	58	26	44
16	48	26	38	58	26	44
18	58	26	44	58	26	44
20	58	26	44	55	32	49
22	58	26	44	55	32	49
24	55	32	49	55	32	49
25	55	32	49	55	32	49
28	55	32	49	55	32	49
30	55	32	49	55	32	49
Note: Can be manufactured according to customer's request.

Capacitors Details:
High-Return Solutions Specifically to your satisfaction.
Most of our customers have been doing business with us for more than a decade, with full trust in our capabilities and reliability. We take pride in solving different challenges to customers in a productive way. Maybe you need a special collection, a distinct packing, an urgent delivery or any other supports, our team is here ready to offer you the integrated solutions and save you more.

OEM and ODM Contract manufacturing and housing molding for your brand.
Your brand and personal preferences could be custom on the products and packings. As a comprehensive capacitor manufactuer, Topo possesses the extensive custom design capabilities to meet your specific requirements, which help you to extend your brand's advantages.

ECO Friendly and Full Material Speaking of quality, green material is the very start. Topo only utilizes the materials friendly to the environment with a social responsibility perspective. Besides, great quality films make excellent capacitors. We never cut corners on materials, but apply full materials for each parts.

Free Sample for Testing An adequate amount of free samples could be offered for your testing of the important electrical parameters. From these aspects those prove that our products are of high quality and can stand the tests.
Rest assured and get your samples right away!

FAQs Topo knows about your general concerns. Check the Q&A that will help you save time and worries in the first place. If your question is not listed, please contact us and we are happy to help.
Can the Topo capacitors be used in the AC and DC circuits?
Generally, our capacitors could apply with both circuits of AC and DC. Yet most of our products are for AC circuit purpose.
Are the Topo capacitors compliance products of EU CE and RoHS?
Yes. All of our capacitors comply with the CE, VDE, and RoHS standards.
Can I print my brand on the capacitor?
Absolutely. Topo has the capability of OEM and ODM. You are free to choose custom services or our regular high-standard capacitors.
How long does a quotation take?
In most cases, your enquiry will be answered within 24 hours. Rest assured that your enquiry will be taken seriously.
Can I get samples?
Sure. We offer adequate samples for your testing free of charge. However, the freight is not covered.

---
