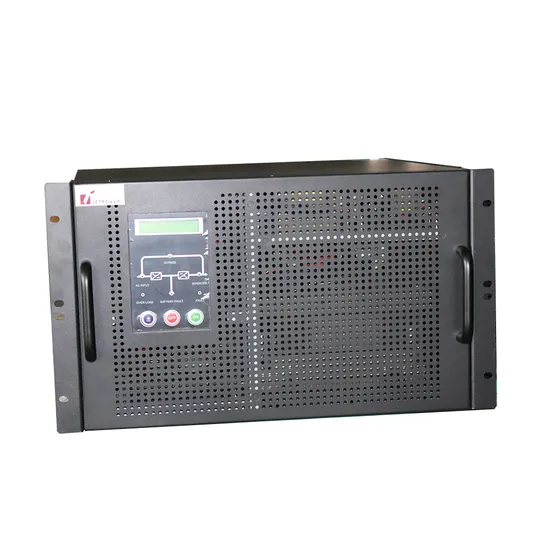

1K Va - 30K Va 220V DC Input 220V AC Output CE Certified Power Inverter

Product Description

Product Description 1k VA~30k VA 220V DC in 220V AC out Ce Certified Power Inverter
ND series inverters are specially designed for railway and electric power industry. Their latest advanced technology suits all critical situations which are sensitive to power interference and need stable, reliable, clean and uninterruptible true sine wave power supply.
1. Input: 220VDC/output: 230VAC, 1phase
2. Output power: 1 to 30KVA
3. LCD display
4. Pure sine wave
ND Seires Inverter Main Features:

SPWM technology, pure sine wave output With output isolation transformer 100% Non linear load ability DC input reverse polarity protection, CPU control, advanced anti-interference technology, good electromagnetism compatibility User friendly LCD+LED display, easy to operate. Comprehensive protection: over voltage, low voltage, short circuit, over load protection and etc Optional three working modes: AC mains first, DC inverter first, pure DC inverter Install: 19 inch rack or standalone Product Parameters Specification

Model		ND 220-1010	ND220-1020	ND220-1030	ND220- 1050	ND220- 1100	ND220-1150	ND220-1200	ND220-1300
DC input	Rated DC input voltage (VDC)	220
	Rated DC input current (A)	4.5	9	13.5	22	45	74.2	99	149
	DC input voltage range (VDC)	180~260Vdc
Bypass	Utility AC input voltage (VAC)	220Vac±20%, 50Hz/60hz±10%
Utility	Rated AC input current (A)	4.5	9	13.5	22	45	67.5	90	135
input	Bypass transfer time (ms)	≤4
AC output	Rated capacity (KVA)	1	2	3	5	10	15	20	30
	Rated output power (KW)	0.8	1.6	2.4	4	8	12	16	24
	Rated output voltage and frequency	220VAC, 50(60)HZ
	Rated output current (A)	4.5	9	13.5	22	45	67.5	90	135
	Output voltage regulation (V)	220Vac±2%
	Output frequency regulation(Hz)	(50±0.25)hz
	THD	≤3%
	Dynamic response (load 0←→100%)	5%
	Power factor	0.8
	Overload	150%,60s
	Crest factor	3:01
	Efficiency at rated load	90%
Environment	Insulation strength (between input & output)	1500VAC, 1min
	Noise (1m)	≤50dB
	Temperature	-10ºC~+50ºC
	Humidity	0~90%, no condensation
	Altitude (m)	≤2000
Sizes	Rack type (W* D * H, mm)	440*450*133	440*450*177		440*500*221.5	N/A	N/A	N/A	N/A
	Tower type(W*D*H,mm)	200×480×490	210×612×540		240×540×680	343×630×700
Weight (kg)(Rack type)		33	41	50	48	N/A	N/A	N/A	N/A
Weight (kg)(Tower type)		31	41	51	58	112	160	180	258
Protection		DC input reversely protection, DC input under voltage,over voltage, overload, short circuit, over temperature

Detailed Photos Product details:
