Product Description
Product Description

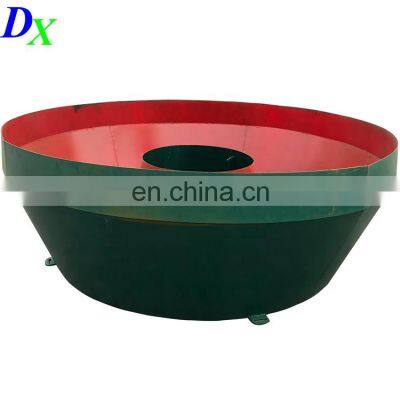

Product DescriptionIntroduction of China wet pan mill for goldDouble rollers wet pan mill is named by the diameter of grinding roller. We have Diameter 850, 900, 1000, 1100, 1200, 1300, 1400, 1500, 1600,etc. Generally speaking, from 850 to 1200 model is used for gold grinding. Larger size from 1300 to 1600 model is used for iron ore, molybdenum ore, lead ore, zinc ore, antimony ore and so on.It is the preferred production for alternative ball mill, and ideal choice for small and medium enterprises dressing.SPECIFICATIONS FOR WET PAN MILL FOR GOLDRollerRoller diametermm1200Roller widthmm200/220Net weightkg1500BasinTop diametermm2400Bottom diametermm1800Widthmm250Machine detailsPowerkw7.5Weightkg5500Dimensionmm2700x2700x2000Main Features of WET PAN MILL FOR GOLD1) Simple structure of wet pan mill ,easy in installation and maintation. 2) Low investment, high production capacity, good efficiency.3) 24 hours continuous working. 4) The grinding wheels and grinding base are made of high manganese steel. They are very hard and rigid, thus using life doubled.Working principle of China wet pan mill for gold:1.When inputting gold sand into the rolling drum, the rollers compress the sand over and over into tiny particles.2.Add 1 kg mercury into the water. Meantime, add gold ore to the machine every 5-10minutes. After 24 hours, recycle mercury. The mercury can absorb the gold or other metals.3. Using a high-density red cloth to wrap mercury up.4.Then squeeze it, the mercury will be pressed out and pure gold will be left in the cloth.As to the larger capacity, we can use mercury shaking machine and mercury steamer to replace the manual work.CertificationsGongyi Dongxing Machinery development:After nearly a decade of strive, Dongxing's customers cover more than 150 companies and 20 countries;Satisfying users is the measurement of Dongxing's pursuit of value. By the corporate endeavor of Dongxing people, the popularity of Dongxing brand has been established.Good faith, carefulness, high-efficiency, and practicality are the business principle of Dongxing Machinery Company. We pay equal attention to the uniformity of getting and giving, we guarantee the richness of customer who uses our equipments, not only for themselves but also for the whole society and country. The unique Dongxing company culture greatly promotes the swift development of Dongxing Company.Honesty first, quality foremost, we promise we will never let you down!Detailed ImagesMachine PartsName: Grinding rollerBrand: DongxingOriginal: HenanThe material of roller is high Mn and White iron. For 1200 model grinding roller, the diameter is 1200mm, thickness is 200mm or 220mm, Weight is 1500kg/pcs.Main FeaturesName: Water panBrand: DongxingOriginal: HenanThe thickness of water pan is stronger than other factories, ours are 5mm or more than 5mm with longer service life. Others is 3mm.in addition, the edge is specially processed with the edge protecting.Machine PartsName: Frame of Wet Stone Grinding mill machine We use high thickness steel plate in strong structure to support grinding rollers and grinding base.Main FeaturesName: Grinding base1200 model: the diameter of grinding base is 1800mm and the thickness is 100mm. The material could be high manganese steel.Packing & DeliveryPackaging details of 20'GPSize20'GPWeight25TPackaging DetailsThis machine is heavy to ship, therefore, we load it into container directly. One 20'GP can load 5sets(1200 model)We can pacakge machine by plastic film or according to customers special request.Packaging details of LCLSize2.7*2.7*2mWeight5.5TPackaging DetailsIf you only buy one set, we will package machine by plastic film, then using wooden case to package it. or depends on your request.Our ServicePre-Sales Service* Inquiry and consulting support. * Sample testing support. * View our Factory.After-Sales Service* Training how to instal the machine, training how to use the machine. * Engineers available to service machinery overseas.Related ProductsBall mill91.8% Response RateJaw crusher91.8% Response RateRaymond mill91.8% Response RateOur aim is to supply the market with top quality Wet Stone Grinding mill machine equipment, and provide best service and best price for our customer!Welcome to visit us at any time!
>>
