Product Details
Product Description
Product Description
Product Features

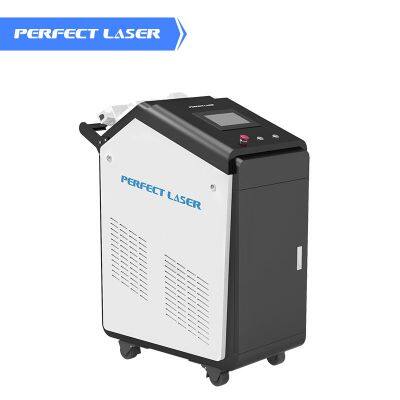

This type channel letter welding machine is mainly used to welding stainless steel channel letters.
1. Adopt double welding path with 5 meter length fiber laser cable, which brings large convenience for your welding job, the double path laser welding machine is suitable for weld large size SS channel letters which can not move easily.
2. Fiber cable is soft, enable laser head electrically move back and forth, up and down, left and right and rotate 360 degree.
3. Heat affected zone is small. The work piece surface of the double path laser welding machine will not deformed.
4. For letters in the advertising industry, there is specially lengthened optical path and the telescopic scope can be added to 800mm.
5. There is no raised spot after welding. No requirement of polishing process. Saving time and labor. The appearance of channel letter welding machine is beautiful and tight.
6. There is CCD monitor. The welding effect of the double path laser welding machine is more clear and intuitive.
7. The double path laser welding machine specially designed long focal distance lens Focus distance is 200mm to meet the demand for ultra-high font welding.
Application
The channel letter welding machine is used for making a variety of stainless steel letter, LED luminous characters, AD Logos, signs and other fast welding.
Welding Materials
0.1-2mm stainless steel, galvanized plate and bronzing plate; 2mm copper and aluminum (500w laser welder).
The channel letter welding machine also called handheld laser welding machine,portable laser welding machine,advertising letter welding machine,laser welder for sale.
Technical Data
Advertising Letter Laser Welding Machine
|
Model
| PE-W300II
| PE-W500II
|
Max laser power
| 300w
| 500w
|
Laser wave-length
| 1064nm Double Welding Path
|
Single power energy
| 100J
| 120J
|
Welding Depth for Carbon Steel/ Stainless Steel / Galvanized Steel / Golden-Plate Steel
| 0.1-1mm
| 0.1-2mm
|
Pulse width
| 0.3-20ms
|
Welding frequency
| 0.5-40HZ
|
Adjustable facular size
| 0.2-2mm
|
Power consumed
| ≤9KW
|
Laser Cavity
| UK imported “Morgen” Brand
|
Laser Lamp
| Single lamp
| Double lamp
|
Electrical source
| 220V/1 phase /
50Hz/40A
| 380V / 3 phase/ 50 Hz
|
Standard worktable
| 800*1000mm
|
Positioning
| CCD Screen + Red Dot Pointer
|
>>
