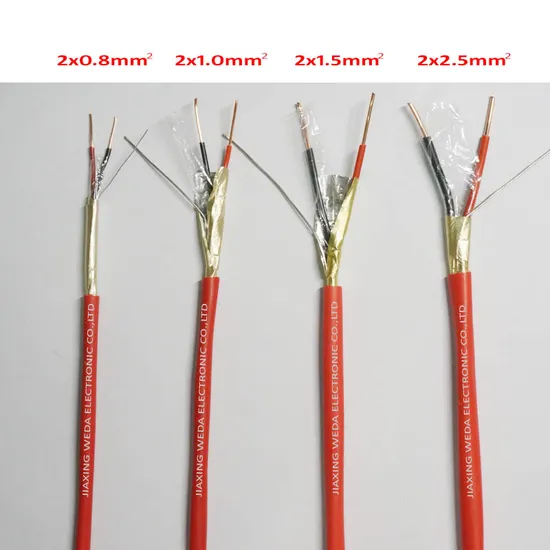

2 Cores Copper Solid / Stranded Fire Alarm Cable Fire Resistance Cable 1mm 1.5mm 2.5mm

Product Description

Product Paramenters FPL FPLR FPLP FIRE ALARM CABLE Main technical parameters: *Conductor:bare copper(IEC60331 /EN50200, BS 6387)
*Insulation:Fire resistant silicon rubber(HD 22.1,BS 7655 EI2), Colors: black/red or brown/red
*Insulator thickness: 0.4mm, 0.6mm, 0.8mm, 0.9mm
*Shielding: Aluminum foil shielding
*Use rated voltage Uo/U 300/300V, 300/500V
*Coat: Fire Resistant PVC, LSZH (environmental protection, flame retardant).
*Implementation criteria: adopting national standards: GB5023.5-1997 SINET, A PROFESSIONAL MANUFACTURER OF FIRE ALARM CABLES *2 Cores, 4 Cores Optional *Shiedled, Unshielded Optional
*Stranded/Solid Copper Optional *FPL, FPLR, FPLP Optional

Product Type	Fire Alarm Cable
Conductor	BC, 100% Bare Copper
Section Area	0.75mm/1mm/1.5mm/2.5mm/4mm / 18AWG/16AWG/14AWG/12AWG
Cable core	2 Cores, 4 Cores
Insulation	PVC Flame Proof or LSZH
Shield	PET tape + Aluminum Foil tape, Mica for optional
Rip Cord	Nylon
Drain wire	CU/TC/CCA
Jacket	PVC Flame Proof or LSZH
Standard	IEC, JB ,DIN , ASTM , BS
Packing	100M/300M/500M per coil or drum

Product Details Applications : *Fire detection and fire alarm systems for buildings.
*Voice alarm systems.
*Emergency voice communication.
*Emergency and escape lighting.
*Other essential service control circuits for standard fire resistance.

FAQ
Are you a manufacture or a trading company?
WEDA ELECTRONIC is a professional cable manufacturer more than 10 years production experience.
What's your company MOQ?
Different model have different MOQ request, but small quantity for initial cooperation is acceptable.
Whether these products quality assured ?
We have strictly quality control, all products are 100% tested before delivery. Quality is assured.
When I want customized products, how to do?
We have Equipped with professional equipment, technicians & skilled employees, OEM & customized service is welcome.
Can you send a sample for us to test?
If we have inventory for the cable model that you required, in this way sample is free.
If we don't have inventory, sample and freight cost need to be paid in advance. The sample cost will be return after initial order is put to us.
If I want to purchase, how to pay ?
Generally we do T/T in 30% deposit before production,70% balance see copy of B/L, bedies, LC is acceptable. Payment terms are negotiable depending on customer's request.
The production time and shipping method.
Goods can be delivered by air, by express or by sea;
Express such as DHL/FEDEX/ UPS/TNT, etc
Production time usually 30 days after receive the deposit and order detail is confirmed.

---
