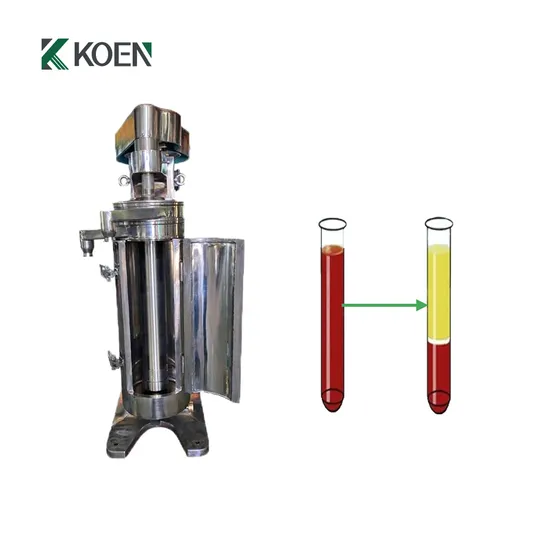

Industrial Blood Separator Animal Blood Cell Separation Tubular Centrifuge

Product Description

Product Description industrial blood separator animal blood cell separation tubular centrifuge Structure and principle: The separator consists of machine body, driving part ,bowl, liquid collecting pan and liquid-in bearing seat etc. The material is sprayed onto the bowl from the inlet on the bottom and strong centrifuge force is formed when the bowl rotates with the material and that makes the material flow upper along the wall of the bowl and then separated because of the different gravity by the centrifugal force.
GFXB112 Blood Separator Centrifuge is our company patent product . Which widely used in separating blood plasma and cell of human being ,pig ,cow ,bovine ,sheep and chicken etc.
GF-for separation: Heavy liquid forms outer ring and light liquid forms inner ring. They flow to the top of the bowl and discharge from their respective outlet. And the little solid is settled on the wall of the bowl and discharged manually after the machine stops.
Detailed Photos
Product Parameters

Model	GFXB105N	GFXB112N
Diameter(mm)	105	112
Height (mm)	730	730
Sedimentation volume(L)	6	7
Max speed(r/min)	16300	15800
Max separation factor	16500	16750
Inlet nozzle diameter (mm)	4/6/8	4/6/8
Material inlet pressure (Mpa)	>=0.05	>=0.05
Capacity of fresh blood(L/H)	300-400	400-600
Motor model	3 phase two pole motor	3 phase two pole motor
Motor power (kw)	2.2	3
Machine dimension (mm)	800*550*1600	900*600*1600
Machine weight (kg)	500	550

Application 1.Human blood protein
The extraction of medical blood supplies from the original blood is a necessity to ensure human life. Blood products are commonly used as injectable medical supplies, and their purity is high, so purification and removal of impurities is an indispensable and important process. The whole closed steam sterilizing tube centrifuge has remarkable effect in solving the problem of purification and impurity removal of blood products.
2.Animal blood separation
The centrifuge can separate plasma and blood cells from animal blood very thoroughly. Features: high plasma yield and low blood cell fragmentation rate.Protein powder made from plasma and blood cells,with high conversion rate and low cost, is a good substitute for some animal and plant proteins. Mammalian plasma powder and blood cell powder can also improve the immune capacity of animals.
3.Plasma can be made:
feed additives, biochemical drugs, albumin,immunoglobulin, thrombin and so on.
Blood cells can be made into: food and feed additives, biochemical drugs, cosmetics SOD, heme and so on
Related products
Company Profile Liaoning Koen Machinery Co.,Ltd ,We are the professional manufacturer of centrifuge machinery, separation equipment over 30 years,we have 4 factory which located in Shanghai , Jinhua ,Yixing and Liaoyang city . Our president was designed and manufactured China First Tubular Centrifuge .Our factory covers an area of 58, 700 square meters, including 38, 600 square meters of workshop area, 4, 000 square meters of office building and 2100 square meters of science and technology building. The company has been committed to the production of domestic advanced disc and decanter centrifuges, with an annual output of 4000 sets of production capacity. The company also specializing in provide with the whole set of technology and equipment. we have professional technology team to design, research and development for customer according to customer's requirements, and have high standard production process control. Our international trade department can supply the whole project service. Our aim is providing you efficiently solution and superior after-service. We have overseas after-sales service department in Taiwan ,Russia ,Korea ,USA,Thailand,Malaysia and Indonesia . We sincerely hope YOU are our next customers! Exported country:At present, our products have been exported to the United States, Belgium, Canada, Australia, Greece, Bolivia, Peru, Saint Lucia, Israel, Malaysia, Indonesia, Philippines, Sri Lanka, Vietnam, South Korea, India, Denmark, Russia, Georgia, Jordan, Bangladeshi, Tailand, Ethiopia, Finland, Spain, Japan, Colombia, Romania and so on more than 30 countries.


Packaging & Shipping
FAQ Q1.What's your advantage? Why we choose you?
A:1) More than 50 years experience of centrifuge & separator production and R&D.We have the most professional techniques and team. More advantage in price.
2)Great production capacity Sustainable Supply . According to customer requirements, We support the customized include package.
3)We use Internationally renowned brand Inverter and PLC . Good quality materials and the best production process
Q2.What's the Payment?
A: T/T, Western Union, L/C, Ali Pay, etc
Q3.Are you a factory or trading company?
A:We are a professional manufacturer. We are warmly welcome clients from worldwide to visit our factory and cooperate with us.
Q4.How long is the warranty period ?
A:18 months after install .

---
