Product Description
Product Description

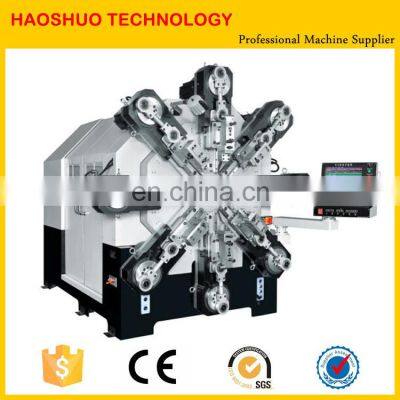

12 AXIS CNC SPRING LEAF SPRING ROLL FORMING MACHINE
The spring forming machine adopts unique design no cam no rockerarm with servo motor control, it can be used to produce both spring and wire-forming products. Such as straight spring, tower spring, pullback spring, double twist spring, tension spring, rectangle spring, clockwork spring, battery spring, deformed spring, flat wire spring, and various kinds of wire forming etc.
Features:
1. Adjusting machine speed is 50% faster than traditional machine because of the non cam and rocker design.
2. Full rolling guide with long time precision.
3. Less cutting toolings loss
4. Automatic detecting and alarm
5. Windows based operating system, Chinese and English display, easy operating
MACHINE TYPE
| SFM10-400
|
WIRE DIAMETER
| 2.5-8.0mm
|
MAX. FEEDING VALUE
| 10000.00mm
|
MIN. FEEDING VALUE
| 0.01mm
|
MAX. FEEDING SPEED
| 70m/min
|
MAX. FEEDING LENGTH
| N/A
|
NO. OF AXIS
| 12
|
PRODUCTION EFFICIENCY
| 0-100 pcs/min
|
RATED POWER
| 36.5KW
|
VOLTAGE
| 380V
|
CONTROLLING SYSTEM
| INDUSTRIAL PC
|
PROGRAM STROAGE
| 2000
|
COMPRESS AIR SYSTEM
| COMPRESSED AIR
| 5-6kg/cm3
|
PROBE
| 3
|
MACHINE DIMENSION
| LENGTH
| 3600mm
|
WIDTH
| 2200mm
|
HEIGHT
| 2300mm
|
MACHINE WEIGHT
| 6000KG
|
>>
