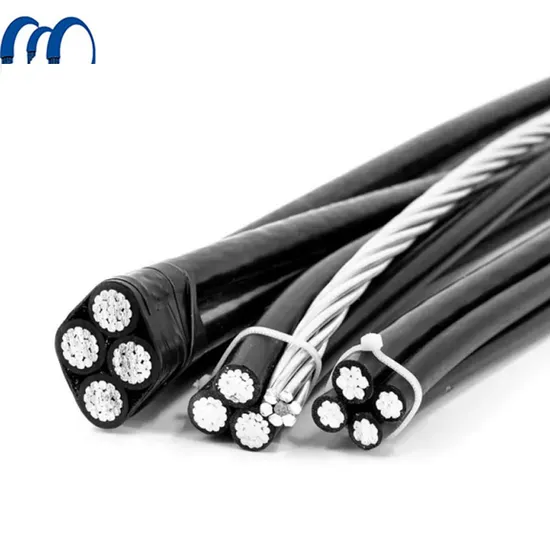

Hot Sale ABC Cable Aluminum Aerial Bundle Cables Caai Overhead Cable Manufacturer

Product Description

Hot Sale ABC Cable 0.6/1kv Aluminum Aerial Bundle Cables Caai Overhead Cable Manufacturer Product Description
Applications
Primarily used for overhead service application such as street lighting,outdoor lighting,and temporary service for construction, To be used at voltage of 600V to 2200V phase-to-phase or less at conductor temperatures not to exceed 75°C for polyethylene insulated conductors or 90°C for cross liked polyethylene insulated conductors.
Standards
We could produce the cable according to many standards: ICEA S-76-474,
ICEA S-95-658,ICEA S-61-402,ICEA S-66-524.NFC 33. IEC
we will do our best to meet your requirements
Specification
Phase conductor: Aluminum wire, 1350-H19 Neutral Conductor : Aluminum wire 1350-H19, All Alloy Aluminum Conductor 6201, Aluminum Conductor Steel Reinforced The material of insulation: XLPE,PE,PVC The Voltage: 600V-2200V Packaging: Iron Or Wooden Drum Duplex Service Drop---Aluminum Conductor
Primarily used for 120 volt overhead service applications such as street lighting, outdoor lighting, and temporary service for construction.

Nominal cross section	Neutral core			Phase core			weight (kg/km)	Allowable ampacity (A)
	AAC		LBS	AAC		Insulation thickness (mm)		XLPE	PE
	NO	diameter (mm)		NO	diameter (mm)
1*6AWG+1*6AWG	7	1.56	563	1	4.11	1.14	92	85	70
1*6AWG+1*6AWG	7	1.56	563	7	1.56	1.14	94	85	70
1*4AWG+1*4AWG	7	1.96	881	1	5.19	1.14	139	115	90
1*4AWG+1*4AWG	7	1.96	881	7	1.96	1.14	141	115	90
1*2AWG+1*2AWG	7	2.47	1350	7	2.47	1.14	216	150	120
1*1/0AWG+1*1/0AWG	7	3.12	1990	19	1.89	1.52	347	205	160

Triplex Service Drop---Aluminum Conductor
Used to supply power, usually from a pole-mounted transformer, to the user's service head where connection to the service entrance cable is made

AWG or kcmil	Bare Neutral Messenger			Phase Conductor			Weight kg/km	Allowable Ampacities(A)
	AAC		Rated Strength lbs.	AAC		Insul. Thick. mm		XLPE	PE
	NO.	Dia.mm		NO.	Dia.mm
2*6AWG+1*6AWG	7	1.56	563	1	4.11	1.14	146	85	70
2*6AWG+1*6AWG	7	1.56	563	7	1.56	1.14	150	85	70
2*4AWG+1*4AWG	7	1.96	881	1	5.19	1.14	219	115	90
2*4AWG+1*4AWG	7	1.96	881	7	1.96	1.14	224	115	90
2*2AWG+1*2AWG	7	2.47	1350	7	2.47	1.14	338	150	120
2*1/0AWG+1*1/0AWG	7	3.12	1990	7	3.12	1.52	544	205	160
2*1/0AWG+1*1/0AWG	7	3.12	1990	19	1.89	1.52	545	205	160
2*2/0AWG+l*2/0AWG	7	3.5	2510	7	3.5	1.52	671	235	185
2*3/0AWG+l*3/0AWG	19	2.39	3310	19	2.39	1.52	830	275	215
2*4/0AWG+l*4/0AWG	19	3.25	4020	19	3.25	1.52	1476	315	245
2*336.4+1*336.4	19	3.38	6146	19	3.38	2.03	1649	420	325

Quadruplex Service Drop---Aluminum ConductorUsed to supply 3-phase power, usually from a pole-mounted transformer, to the user's service head where connection to the service entrance cable is made.

AWG or kcmil	Bare Neutral Messenger			Phase Conductor			Weight kg/km	Allowable Ampacities(A)
	ACSR		Rated Strength lbs.	AAC		Insul. Thick. mm		XLPE	PE
	No.	Dia. mm		No.	Dia. mm
3*6AWG+1*6AWG	1,6	1.68	1190	1	4.11	1.14	221	75	60
3*6AWG+1*6AWG	1,6	1.68	1190	7	1.56	1.14	227	75	60
3*4AWG+1*4AWG	1,6	2.12	1860	1	5.19	1.14	331	100	80
3*4AWG+1*4AWG	1,6	2.12	1860	7	1.96	1.14	338	100	80
3*2AWG+1*2AWG	1,6	2.67	2850	7	2.47	1.14	511	135	105
3*1/0AWG+1*1/0AWG	1,6	3.37	4380	19	1.89	1.52	824	180	140
3*2/0AWG+l*2/0AWG	1,6	3.78	5310	19	2.13	1.52	1015	205	160
3*3/0AWG+l*3/0AWG	1,6	4.25	6620	19	2.39	1.52	1254	235	185
3*4/0AWG+l*4/0AWG	1,6	4.77	8350	19	2.68	1.52	1554	275	210
3*336.4+1*336.4	1,18	3.47	8680	19	3.38	2.03	2321	370	280
3*336.4+l*4/0AWG	1,6	4.77	8350	19	3.38	2.03	2221	370	280

Detailed Photos
Packaging & Shipping
Testing
Our Equipments
FAQ
1.Are you a manufacturer or trading company?
We are a professional manufacturer.We can control your order from the first
beginning to the last.
Welcome to visit us.We'll pick you up in Zhengzhou
2. How can I get a sample to test your quality?
The samples are free for you.New clients are expected to pay for the courier
cost.
3.What's your Minimum Order Quantity?
Normally 1000m.How ever the cable is very heavy.
You'd better order a suitable quantity to avoid the high freight.
Sea transportation is the best option.
4.Can I get a discount?
It depends on your quantity,We can make a discount and afford the freight.
Pls kindly contact us.
5. Does your company accept OEM production?
Yes, could print your company name we even custom the quality card to
promote your company.

---
