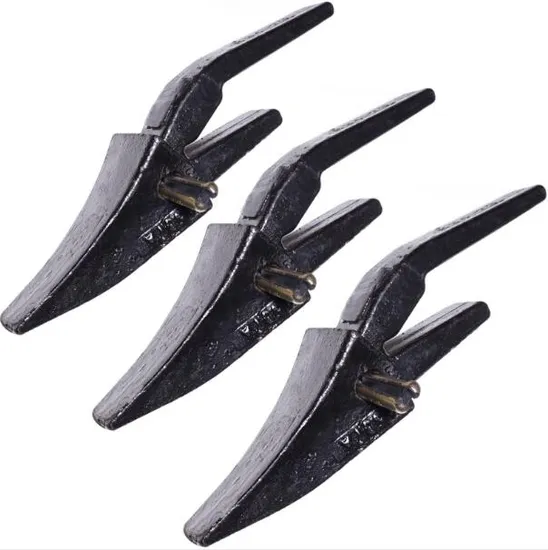

TF23 Jd315 Casting Excavator Bucket Teeth Mini Bucket Teeth with Pin

Product Description

Material Specification

Material:	Carbon steel, Alloy steel,etc, such as T1,T2,T3,T4.with casting/forging process
Machine type:	Excavator, Loader,Bulldozer,etc.
Brands:	TIG / SAR
Heatment;treatmentt:	Quenching and tempering treatment
Hardness:	Teeth : HRC48-52 ,Impact value >=17J Adapters : HRC34-38 ,Impact value >=25J
Work condition:	With excellent elongation and tensile strength, suitable for many different hard working conditions.

CAT style bucket tooth for a J700 series, takes a 9U9616 pin and a 4T4707 retainer.
Quality aftermarket G.E.T. (bucket teeth) for CA-T, J-C-B, Bob-cat, Ca-se, Ko-ma-tsu, Ku-bo-ta and many others including manufacturers for all your backhoe, loader, skid steer, grader, scraper and excavator bucket tooth (teeth) needs.
STARKEA Products are Excavator bucket teeth&adapter, Grader Blades,excavator undercarriage parts, excavator buckets, slewing bearings, high strength fastners, pin&retainer, bolts&nuts, ect and customized Investment casting, die casting, sand casting, Stamping and machining parts with kinds of materials like carbon steel,Stainless steel,alloy steel, grey iron ,ductile iron ,aluminum.copper ect.
Mechanical Property

Material	Hardness	V-Norch	Tensile	Elongation	Yeild
T1	47-52HRC	akv>=16J	>=1499Mpa	>=3%	>=1040N/mm2
T2	48-52HRC	akv>=20J	>=1500Mpa	>=4%	>=1100N/mm2
T3	48-52HRC	akv>=20J	>=1550Mpa	>=5%	>=1100N/mm2

For general purpose we recommend Grade 2 which is both strong and wear long. For Grade 1 material, we reduce the alloy composition; therefore the wear life is 2/3 of Grade 2. And our Grade 3 is best material which wears 1.3 times of Grade 2.
Bucket Teeth Catalogue

TF23	1.8	TEETH LONG
230SP	1.2	TEETH STANDARD
230SP	1.5	TEETH STANDARD
23ST	1.27	TEETH STAR PENETRATION
23T	1.2	TEETH PENETRATION VIP
23WT	1.2	TEETH TWIN TIGER
240S	2	TEETH STANDARD
250S	3.5	SEETH STANDARD
2740-23-25	1.8	ADAPTER FLARED
834-23	1.6	TEETH
U43792	1.8	ADAPTER FLARED
JD23	1.8	TEETH
T221X230	2.9	BOLT-ON ADAPTOR
T728X230	1.5	ADAPTER FLARED

---
