Toughened Casting Steel Porcelain Insulator Cap for High Voltage Electromagnetic Insulator

Product Description

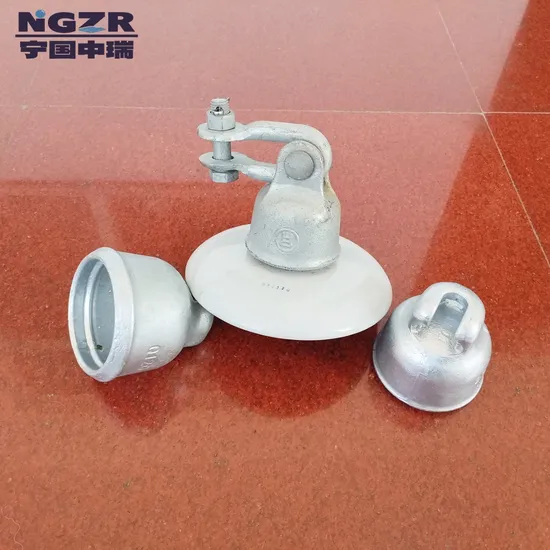

Product Description Product Name: Toughened casting steel porcelain insulator cap for High voltage electromagnetic insulator
Including: insulator iron cap /clevis cap /socket cap /rod end cap /post end cap
Product Description: This product is a part of porcelain insulator, be used to connect and protect the porcelain insulator. This casting steel cap used material can used Ductile iron or other kind alloy steel, product can do heat-treatment, and finished with Hot Dip Galvanizing, that will improve this product quality and life !
Applications: Widely used in Extra-high & Ultra-high& high & low voltage power transmission line
Product Parameters

ITEM	Caps Type
Strength lever(kn)	40	70	100	120	160	210	300	420	550
Tensile Failure Load(kn)	60	120	145	155	210	275	385	525	700
For Porcelain or Glass	U40BS / U70BS / U120BS /U160BS / U210BS / U300BS / U400BS
Remark:	We can production follow the requirement of customer's drawing.

Detailed Photos Packaging & Shipping Packaging: Metal pallet , wooden Box,Ton Bag
Shipping: Loading in 20 feet contianer (18-24 tons), shipping by Sea or by train.

Company Profile NGZR (Full name: Anhui Ningguo Zhongrui Wear-resisting material Co., Ltd) was a professional manufacturer of casting grinding media and wear-resistant alloy casting part. NGZR's founder start casting grinding media business since 1987, and NGZR was established in 2007, It have more than 30 years experience for wear-resisting casting part and casting grinding ball.
NGZR's foundry was located at Ningguo City (national) industrial park, it is 350km away from Shanghai Sea port, and 150km away only from Nanjing Lukou international Airport. Foundry covers an area of 1.8 Hectare, has workshop area more than 10,000 SQM. Foundry annual production capacity was 30,000 - 50,000 MT. NGZR have got the certifications of ISO 9001 quality management system / ISO 14001 environmental management system and ISO 45001 Occupational Health & Safety management system.
NGZR's main products as below:
#1 Casting grinding media (grinding ball & grinding cylpebs) for Ball Mill:
material including: Super chromium ( 18-28% Cr), High Chrome (10-16%), Low Chromium (1-8%). Grinding ball (cylpebs) size: Φ 6- Φ150 mm; Grinding media product hardness: HRC 58-65.
#2 Wear-resistant casting part for Mining Machinery :
A#. Casting liner for Ball mill / SAG mill / AG mill /Vertical grinder / Roller mill; B#. Casting liner & Hammer & Jaw plates for Jaw crusher / Hammer Crusher / Impact crusher and other Mining Equipment; C#. Casting bucket tooth for Excavator / Loader / hydraulic impact breaker and other construction machinery.
For different kind castings of mining machinery, different materials such as Mn13Cr2 /Mn18Cr2 /Cr5Mo /Cr15Mo 2/Cr26Ni5 /CrMoNi alloys can be selected for different hardness ore, that will be greatly improving the wear resistance and cost-effectiveness of castings;
#3 Other metal casting with hot Zinc surface- plating :
A# Casting steel cap of High voltage electromagnetic insulator;
B# Casting Corner Fittings of Standard Cargo Containers;
C# Casting Bracket for Solar photovoltaic ;
NGZR foundry have 4 different casting workshops with different casting production line, details as below :
#1 Full Automatic Metallic mould coating sand casting production line
Can make large size casting steel ball, Product size: Diameter 40-150 mm ;
#2 Resin-sand Shell mould vertical casting production line
Can make small size casting ball & cylpebs; Product size: Diameter 6-40 mm ;
#3 Resin-sand Wooden mould manual casting production line
Can make casting product each size: max 5000 *5000 *1000 mm , each weight: max 1500 kg;
#4 Lost foam process full Automatic precision casting line
Can make casting product each size: max 1500 *1500 *1200 mm , each weight: max 3000 kg;
NGZR not only has a large production capacity and advanced production equipment, but also is equipped with advanced design & testing equipment, such as Auto-CAD drawing software, CNC model cutting machine, direct reading spectrometer, hardness tester, far infrared thermometer, etc., which can help accurately control models size and alloy composition, realize temperature controlled melting, constant temperature pouring, automatic temperature controlled quenching/annealing and other production processes, ensuring the stable and reliable quality of grinding balls & casting parts.
NGZR have more than 30 years of experience in the design/ produce and after-sales service of grinding media and wear-resistant casting parts. we have rich experience in cooperating with enterprises in different industries such as iron ore/non-ferrous metal mines/cement industry/sand & aggregate industry/Concrete materials and coal-fired power plants, and provide solutions for end customers. NGZR can do OEM & ODM with customer, our products are not only hot sale in China domestic market, also been exported to oversea countries such as the Philippines/ Malaysia/ Indonesia/ Ghana/ Zimbabwe, etc.
NGZR is committed to providing one-shop solutions for the grinding media and wear-resistant casting parts used in customers' existing equipment, reducing unit production costs & improving production efficiency for customers,, ensuring and extending the maintenance cycle and service life of customers' equipment, creating value for customers, to take NGZR own development.
Our Advantages #1 More than 15 years experience for professional manufacture alloy steel casting.
#2 Custom-made design,
#3 Products have high abrasion resistance.
#4 Products have long service duration.
#5 Products are easy and fast installation and replacement;
#6 OEM and ODM are available.
FAQ #1 How to get a quotation ?
Please send your requirement and drawing to us,after confirm all details, we will send quotation sheet to you within 3 working days by E-mail.
#2 Can we place order to you if we can't provide drawing of this steel cap ?
Yes, we can accept your order without drawing. we will arrange our engineers to inspect and measure, then we will design the drawing and confirmed with you.
#3. Could you improve our existing product to help us reduce production costs and improve production quality?
Yes, we have more 15 years service experience for alloy parts casting . We can provide new casting processing and new alloy raw material for you to reduce production costs.
#4 What is your MOQ? Can we got a sample?
We can make one pcs of sample for you inspect. Our MOQ is 1000 kgs.
#5 What is the order lead-time?
Order Quantity less than 100 mt, order lead-time is 30-45 days after got deposit;
Order Quantity is 100-500 mt, order lead-time is 45-60 days after got deposit;
Order Quantity is 500-2000 mt, first 500 mt need 30 days, continue will be 1000 mt each month;
#6 What is your terms of payment ?
With different quantity and price of contract, We accept different payment term as below:
30% T/T in advance, balance T/T before shipment; 30% T/T in advance, balance T/T within 30-60 days after B/L date ( O/A 30-60 days); 30% T/T in advance, balance T/T within 60-180 days after B/L date ( O/A 60-180 days);

---
