Car Parts Products Making Automative Sealing Machines Rubber Molding Machine

Product Description

Rubber Sealing strip connection machine ,rubber pipes join machine 30T

1. Machine Features :

1.Using the C-shaped frame with a fully open clamping structure on both side;
2.Using the all-in/all-out injection device without a runner,no check valve,and more accurate in measurement;
3.No aging rubber generated in the production process,nostub bars,more material saving and more efficient;
4.Being the best production equipment for connection of various types of sealing strips
5.The range of the material PA,PE,PP,PS,PC


2. Main Paremeters :

Item		Unit	Model Item Parameters
			TCI-10	TCI-30	TCI-50
Ejection System	Screw Diameter	mm		φ25	φ30
	Screw Speed	r/min		0~120	0~120
	Injection Pressure			171	155
	Piston Diameter	mm		φ30	φ40
	Injection Capacity	cm3		160	300
	Maximum Ejection Rate	cc/s		20	30
Clamping System	Clamping Force	Ton)	3×2	30	47
	Opening Stroke	mm	120	300	350
	Maximum Distance between Hot Plates	mm	150	350	450
	Minimum Mold Thickness	mm	40	60	100
	Hot Plate Dimensions	mm	200×150	300×300	450×400
	Electric Heating Power	kW	7.5	8	9.6
Power System	Working Pressure (MPa)		14	20	21
	Motor Power (kW)	kW	4	7.5	7.5
	Installed Power (kW)	kW	12	20	21
Others	Length × Width × Height (m)		1.3×1.0×1.6	1.8×1.0×2.7	2.0×1.0×3.0
	Total Weight (T)	T	1	2	3
	Cooling Water Flow (L/min)	L/min	30	30	30

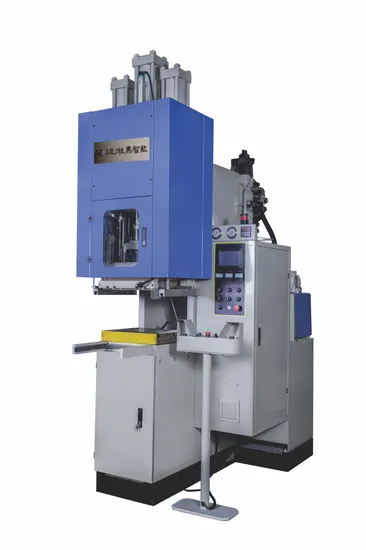

3. Machine and Products pictures :


4. Package :

5. Our Exhibition :
6.Our factory:
7. The main service item on our machine

1. installation and debugging: Our engineers will teach you about the installation and debugging for free.
2. Technology training : Our company will offer technology training for your operation.
3. After-sales service: We will supply the free repairment on this machine for one year,

but will supply the maintenance lifetime. ( the service is only for natural damage)

---
