Animal Floating Fishfeed Dog Pet Food Pellet Making Processing Extruder Machine

Product Description

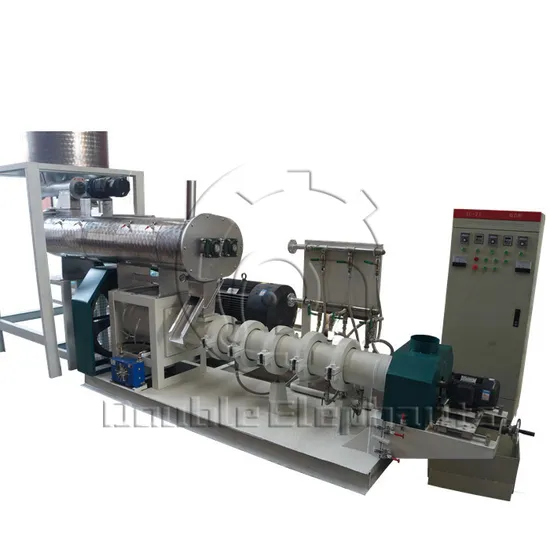

animal floating fishfeed dog pet food pellet making processing extruder machineProduct Description DGP Single Screw Pet Food Making Extruder Machine For Animal Feed Extruder is widely used for producing grains into high-grade aquatic feed pellets for fish,catfish,tilapia,shrimps,crab etc.The produced fish feed pellets can float on the water surface without dissolution for over 12 hours.According to your requirement and production scale,pet food extruder machine be classified into dry type machine and wet type machine.
The feed machineis widely used for producing grains into high-grade aquatic feed pellets forfish,cat fish,shrimps,crab and pet like dog cat etc.The fish feed machinecan float on the water surface without dissoluti of or over 12 hours.
It is widely used for producing maize flour, soybean flour or compound powder, wheat bran into high grade aquatic feed pellets for fish, catfish, shrimps, dog,.cat,bird etc. The puffing fish feed pellets can float on the water surface for over12 hours without water polution. According to your requirement and production scale, floating fish feed machine can be classified into dry type machine and wet type machine.

Model	Capacity ( t/h)	Main Power kw)	Feed power (kw)	Screw Dia (mm)	Cut power (kw)	Condition Power (kw)
DGP60	0.12-0.15	15	0.4	φ60	0.4
DGP70	0.18-0.25	18.5	0.4	φ70	0.4
DGP80	0.3-0.35	22/27	0.4	φ80	1.1
DSP80	0.3-0.35	22/27	1.1	φ80	1.1	2.2
DGP100	0.4-0.45	30/37	1.1	φ90	1.5
DSP100	0.5-0.7	30/37	1.1	φ90	1.5	2.2
DGP120	0.5-0.7	55	1.1	φ120	2.2
DSP120	0.8-1.0	55	1.1	φ120	2.2	2.2
DGP135	0.8-1.0	75	1.1	φ133	2.2
DSP135	1.2-1.5	75	1.1	φ133	2.2	2.2
DGP160	1.2-1.5	90	1.5	φ155	2.2
DSP160	1.8-2.5	90	1.5	φ155	2.2	3.5
DGP200	1.8-2.0	132	1.5	φ195	3.0
DSP200	4.0-5.0	132	1.5	φ195	3.0	4.5

Raw Material:
The raw material is: Flour,corn meal,soybean meal,maize meal ,meat meal,bone meal,fish meal etc.
Fitness: about 60-80mesh which were crushed and mixed.
Moisture content: about 20%-25%.

Fish Feed Pellet Sample
Round Shape
Diameter:1-15mm by replace the molds
Features and Characteristics
1.According to different requirements, variety shapes of high-grade feed pellets for fish, shrimps .etc
2.The finished pellets can keep floating for 12 hours without pollution to water.
3.The floating time can be controlled by the puffing degree adjustment
4.Floating fish feed machine can make pellet from diameter 1mm-12mm just by changing the mould.
5.Electric heating device is adopted which can improve the feed expansion rate and pellets floating time.
6.High temperature and high pressure cooking process can kill the salmonellosis and bacterial infections and
also makes the pellets easily to digest.
7.The cutting device can be adjusted to make pellets of different length.
8.The wet type machine needs a boiler to make steam which can conduct steam to the conditioner and ripen the raw material in advance.

Working principle :
After the material is sent into feeding device, they will be extruded and expanded by the screw shaft with high pressure and temperature which makes the raw material fully cooked and sterilized. Then the expanded material will be formed into pellets by shaping mould. You can change different moulds to make pellets with different diameters. After that a cutting device will cut the formed pellets into different length as required.
Our Services
Packaging & Shipping
Company Information Henan Double Elephants Machinery I/E CO.,LTD
A professional collection of research ,design, production and sales of Oil making machine,animal food machine ,extruder machine for pet and snacks,and many other kind of food machine.
Our company has a big manufacturing factory with 40 years rich experiences based on one original machinery started by our government machinery department, we adopts advanced production technology, sophisticated equipment and have won abundant strength after many years of development accumulation.
Our puffed machinery has won the 1999 best national evaluation,and passed the ISO 9001 International Quality Authentication in 2000.More proudly, we have achieved the CE certificate to convenient more European customers.
Customer Vist
CE&ISO Certification

---
