Slotted Liner Pipe Well Completion Sand Control Gravel Pack

Product Details

Product Description

Product Description

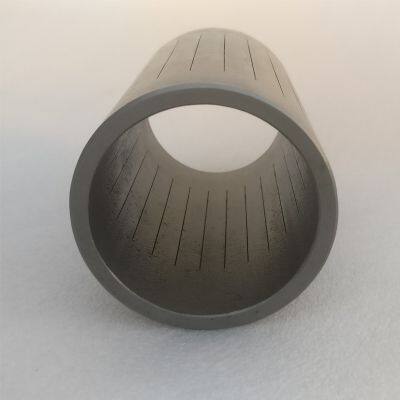

Slotted Liner/Tubo Ranurado
1. Base Pipe: API 5CT Tubing and Casing Pipe
2. Steel Grade: API 5CT J55 K55 N80 L80 P110, 13Cr
3. OD: 1.9''-7''
4. Length: R1 R2 R3
5. Slot width: 0.15-4mm ± 0.03mm
6. Slot length: 60-120mm ± 1.0mm
7. Slots around circumference: As per the order
8. The distance between adjacent slots: As per the order
9. Slot Surface: Hard-quenched

Application
Sand-control Completion of Horizontal well, Side Track Well Drilling, Branch Well, and Gravel Pack Well Completion.

---
