Chemical Homogenizer Mixer Cosmetic Emulsifier Liquid Soap Lotion Shampoo Cream Mixing Machine

Product Description

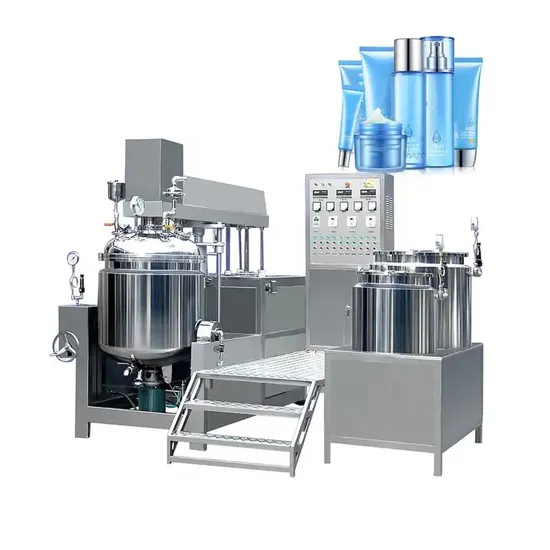

100L Homogeneous vacuum emulsifying mixer machineVacuum emulsifying machine is an ideal option to produce high-grade skin care products, ointment, and many other kinds of creams which need to be very soft and smooth. It has the functions of heating, mixing, scraping, rotating at different speeds and vacuum supply. It has a very wide application from cosmetics (skin cream, hair gel, lotion etc) and food (jam, chocolate, sauces etc.) to ointment, syrup, paste and chemicals(painting, adhesives, detergents) The machine is mainly made up of oil tank, water tank, vacuum homogeneous tank (main tank), heating system, mixing system, vacuum system, electric lifting system, operation control cabinet and piping system.Features:1. Homogenizer is installed on boiler bottom to increase motor power more thoroughly and strongly. It uses advanced German technology, with unique structure. The material moves of high-speed in the multi-gap between the rotor and the stator, which forms a strong hydraulic shearing. During few production, it can exert homogenizing effect fully.
2. Mightiness balance isotactic curve rotor is matched with stator with corresponding structure to realize liquid high-capability cut,rubbing,centrifugal to make sure exquisite and slick cream; boiler body and pipe surface mirror polishing.
3. Customer can choose frequency conversion timing homogenizer and highest rotate speed is 2900 r/min.
4. The oil tank and water tanks are equipped with rating stirring dispersion device 0.55KW, so that oil and water could be heated more quickly and evenly.
5. The lid is with a light observation hole, which can keep control of the material emulsification situation in the kettle. There is a small material entrance, which is convenient to add special essence into the kettle.
6. Bottom material discharging is easy to operate. The finished materials can be directly moved into the filling and packing
system. The materials can also be dumped out, which is easy to clean.
Details ImagesAll tanks have 3 layers. They are all made from high quality SUS304 / 316. Internal and external surface is treated by fine
polishing which is safe and good looking. Complex scraping board blending oar is suitable to every kind of complicated recipe and achieve optimizing effect. For the heating system and oil tank and water tank, the heating power is up to 8kw. The insulation system is installed outside of the external layer. It not only helps thermal reduction, also protect the operators being burned. Control system is with digital time relay device, which can adjust the homogenizer speed and working time depending on the
features of different products.
Specification

Name	KPZ-10	KPZ-50	KPZ-100	KPZ-200
Working volume(L)	10	50	100	200
Main pot thickness(mm)	3*3	4*3*3	4*3*3	5*4*3
Scraper stirring power (kw)	0.12	0.75	1.1	2.2
Scraper stirring speed (rpm)	0-65	0-86	0-86	0-86
Homogenizer power(kw)	0.55	2.2	3	4
Lifting power(kw)	0.12	0.37	1.5	1.5
Homogenizer speed(rpm)	0-2850	0-2850	0-2850	100-2950
Sealing method	Skeleton oil seal; Mechanical seal,oil seal
Dimensions(mm)	1000*615*1560	1620*750*2100	1800*700*2230	2250*2940*2485

Name	KPZ-300	KPZ-500	KPZ-800	KPZ-1000
Working volume(L)	300	500	800	1000
Main pot thickness(mm)	5*4*3	6*5*3	6*5*3	6*5*4
Scraper stirring power (kw)	2.2	4	5.5	11
Scraper stirring speed (rpm)	0-86	0-62	0-62	0-62
Homogenizer power(kw)	5.5	7.5	11	15
Lifting power(kw)	1.5	1.5	1.5	2.2
Homogenizer speed(rpm)	100-2590	100-2590	100-2590	100-2590
Sealing method	Skeleton oil seal; Mechanical seal,oil seal
Dimensions(mm)	2260*3000*2550	2600*3600*2980	2530*3490*3060	4249*2660*3050

Notes:If any change of data, we will not notify further
