OEM Customized 12V 24V 36V 48V 60V 72V 96V 110V 1000W 2000W

Product Description

Model	D110BLD1000-24A-30S	D110BLD1000-36A-30S	D110BLD1000-48A-30S	D110BLD1000-310A-30S
Power W	1000	1000	1000	1000
Voltage V	24	36	48	310
No load speed rpm	4200	4200	4200	4200
Rated speed rpm	3000	3000	3000	3000
Rated current A	52.8	34.72	26.04	4.03
Rated torque N.m	3.18	3.18	3.18	3.18
Peak torque N.m	9.55	9.55	9.55	9.55
No-load current A	<12A	<8.5A	<6A	<1.2A

Customizable accessories:motor length, shaft, voltage,power,rated speed and so on.
Feature:
A. High power range from 5W to 20KW
B. Rich stock and fast shipping time in 10 working days
C. Easy for speed & direction adjustment
D. 16mm to 220mm size range with low noisy
E. Strong stability for driver/controller
F. Lifetime above continuous 10000 hours
G. IP65 protection rank is available for us
H. Above 90% enery efficiency motor is available
I. 3D file is available if customers needed

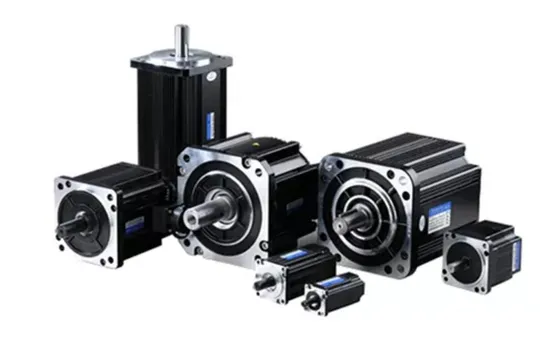

J. Permanent magnet brushless dc motor
K.High-performance and stable matching driver and controller
Notice for Usage: 1).Please don't use motor out of the range of nameplate of gear box and motor and the specification of product
catalogue, avoiding getting an electric shock, hurting or damaging the device. 2).Please do not put your fingers and things into
the opening part of gear or motor ,in order to prevent getting and electric shock,hurting,catching a fire of damaging device etc.
3).Please do not use the Injured gear head of motor, in prder to orevent hurting,catching a fire etc. 4).Please do not put off the
nameolate. 5) If the products are reformed by the customers personally, it no longer belongs to the guarantee scope, and our
company doesn't undertake any responsibility. 6) When you move it, if it shed off or tilt to one side, it is very dangerous,
please pay more attention. 7) Please must not put the flammable thing near the gear head and motor, in order to prevent catching a
fire.

---
