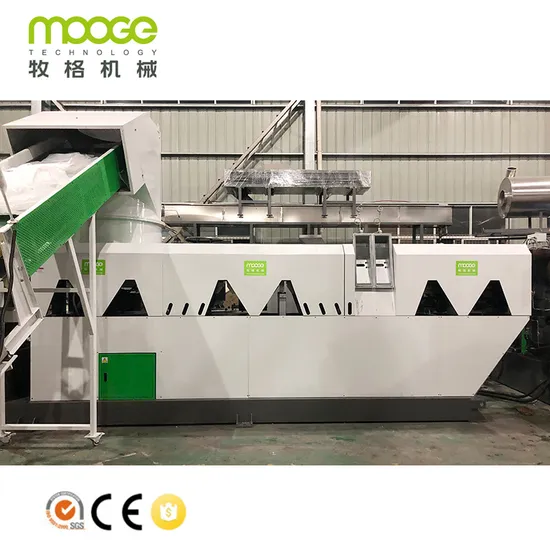

PP PE Recycle Plastic Pellet Production Line

Product Description

PP PE Recycle Plastic Pellet Production Line Product Description
The PP PE Recycle Plastic Pellet Production Line has two kinds of types. One is the RDS Series Single Stage Compacting Die-Face Cutting Pelletizing Line which is used for PE Film, PE bags and PLA Film. If your material is more clean (not dirty), you can use this type. Other is the RSS Series Double Stage Compacting Die-Face Cutting Pelletizing Line which is used for PE Film, PE Bags and PLA Film. Compared with single stage, double stage works more stable, produces more clean and more density granules.
We can design the layout according to customers' workshop.
Product Parameters
RDS Series Single Stage Compacting Die-Face Cutting Pelletizing Line

Model	Screw Diameter	Screw L/D	Main Motor Power	Capacity
RDS-SJ85	85mm	28-33:1	55KW	150-200kg/hr
RDS-SJ100	100mm	28-33:1	75KW	200-300kg/hr
RDS-SJ130	130mm	28-33:1	90KW	300-400kg/hr
RDS-SJ150	150mm	28-33:1	110KW	400-500kg/hr
RDS-SJ160	160mm	28-33:1	132KW	500-600kg/hr
RDS-SJ180	180mm	28-33:1	160KW	600-800kg/hr
RDS-SJ200	200mm	28-33:1	200KW	800-1000kg/hr

RSS Series Double Stage Compacting Die-Face Cutting Pelletizing Line

Model	Screw Diameter	Screw L/D	Main Motor Power	Capacity
RSS-SJ85	85mm	28-33:1	55KW	150-200kg/hr
RSS-SJ100	100mm	28-33:1	75KW	200-300kg/hr
RSS-SJ130	130mm	28-33:1	90KW	300-400kg/hr
RSS-SJ150	150mm	28-33:1	110KW	400-500kg/hr
RSS-SJ160	160mm	28-33:1	132KW	500-600kg/hr
RSS-SJ180	180mm	28-33:1	160KW	600-800kg/hr
RSS-SJ200	200mm	28-33:1	200KW	800-1000kg/hr

Features At A Glance
Compacting Force Feeder
Compacting hopper opening by hydraulic system.
With glass window and light to check inside working.Barrel base with the water cooling system controlled by magnetic valve by
temperature
The barrel touched material all made by stainless steel.
Blades
Installed in Compacting Force Feeder
Single Screw Extruder
Single screw Extruder made by sturdy frame, heavy. No vibrating when machine running;
The whole frame where installed the gearbox, motor and screw has done the milling working.
The frame is build up by the square tube and thick steel on top.
Die Head
Made by 40Cr material with tempering and quenching treatment.
Heating up by the heating core. Design as a material disperser so the material comes out as noddle, so it can remove the air and humidity from the material.
Hydraulic Screen Changer
Double position board model.
Board made by 38CrMnAl with forging, heating treatment won't deform after heating using. Screen changing driven by hydraulic.
With this air accumulator to ensure the screen changing working faster and save energy.
With the magnetic drive valve to control the working.
Vertical Die Face Cutting System
Cutting speed adjust by inverter
Inverter brand: DELTA of Taiwan Blade made by SKD-11 steel
Die mold Made by the 38CrMoALA material with forging treatment, surface been nitriding treatment and buffing.
Horizontal Die Face Cutting System
Die-face cutter model: Horizontal type easy for the changing blades and maintenance. With the die, water ring cover, blade, blade rack. Blade made by SKD-11 steel.
Die mould Made by the 38CrMoAlA material with nitriding treatment
Vertical Dewatering Machine
Remover water with high speed before granules into vibrator screen machine.
Rotor and cover made by stainless steel SUS 304.
Inside rotor is special design as hexagon with better effect. Machine bottom have one waste water collecting tank with filtering mesh to clean the water before drain.
Vibration Screen
Used to screen out bigger size pellets, so can put back to pelletizing again. Made by stainless steel.
Company Profile
Packaging & Shipping
After Sales Service
A. Service before sale
(1) 24 hours online. Your inquiry will be quick reply by email.
Also can go through all questions with you by any online chatting tools (Wechat, Whatsapp, Skype, Viber, QQ )
(2) Professionally and patiently introduction, details pictures and working video to show machine.
B. Service on sale :
(1) Test every machine and inspect the machine seriously.
(2) Send the machine picture which you order, then packing it with standard export wooden box after you confirm the machine is ok.
(3) Delivery: If ship by sea .after delivery to seaport. Will tell you the shipping time and arrival time. Finally, send all original documents to you by Express For Free.
If delivery it by Express to your door (DHL, TNT, Fedex, etc) or by air to your airport, Or logistic to the warehouse which you request. We will tell you the tracking number after delivery.
C. Service after sale
(1) Free insurance for goods.
(2) 24 hours online to solve any problem. Supply you English manual book and technical support, maintain and install video to help you solve the problem, or dispatch worker to your factory.

---
