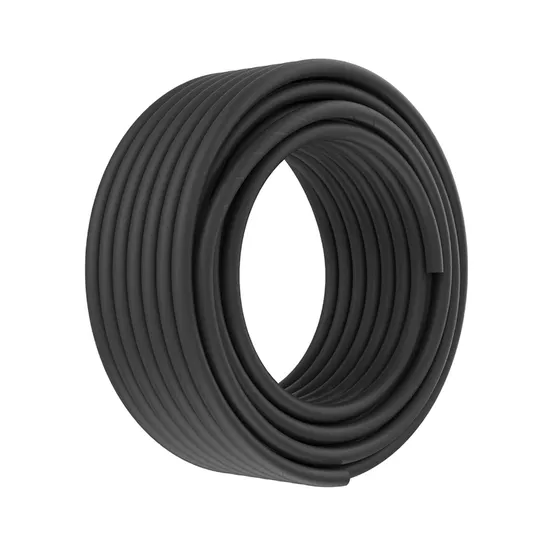

Long Service Life Industrial High Pressure Rubber Pipe Assembly Flexible Hydraulic Hose

Product Description

Product Parameters

Size		Inside Ø mm		Braid Ø mm			Outside Ø mm	Working Pressure		Burst Pressure		Bend Radius	Length
Inch	mm	Min	Max	Min	Max		Max	Bar	Psi	Bar	Psi	mm	m
3/16"	5	4.6	5.4	10.6		11.6	14.1	415	6020	1650	23295	90	50/100
1/4"	6.3	6.2	7.0	12.1		13.3	15.7	400	5800	1600	23200	100	50/100
5/16"	8	7.7	8.5	13.7		14.9	17.3	360	5075	1400	20300	115	50/100
3/8"	10	9.3	10.1	16.1		17.3	19.7	331	4785	1320	19140	130	50/100
1/2"	12.5	12.3	13.5	19.0		20.6	23.0	276	3990	1100	15950	180	50/100
5/8"	16	15.5	16.7	22.2		23.8	26.2	250	3625	1000	14500	200	50/100
3/4"	19	18.6	19.8	26.2		27.8	30.1	215	3120	850	12325	240	50/100
1"	25	25.0	26.4	34.1		35.7	39.9	165	2390	650	9425	300	50/100
1 1/4"	31.5	31.4	33.0	43.3		45.7	49.5	125	1810	500	7250	420	20/40
1 1/2"	38	37.7	39.3	49.6		52.0	55.9	90	1305	360	5220	500	20/40
2"	51	50.4	52.0	62.3		64.7	68.6	80	1160	320	4640	630	20/40

Construction:
Tube: Oil resistant synthetic rubber
Reinforcement: Two high tensile steel wire braid
Cover: Oil and weather resistant synthetic rubber
Temperature: -40°C to +100°C
Application: Hose range suitable to carry hydraulic fluids such as glycol, mineral oils,fuels,lubrication, emulsion, hydrocarbons etc

Company Profile
JUYE JINTONGDA PIPE INDUSTRY CO., Ltd is a professional manufacturer of hydraulic hose and industrial hose with various specifications from 1999. We integrates the Research & Development, Production, Sales Export and focus on the high quality products all the time.
Our company is registered with 21 million RMB capital, covering an area of 30,000 square meters. We are located in the alluvial plain of the Yellow River, with developed transportation and convenient logistics.
We specialize in production and sales of hydraulic hose, now we mainly produce 1SN, 2SN, 4SP and 4SH products in compliance with American standards of SAE J517 and European standards of DIN.
Our annual production capability is 10 million meters around (cloth hose 4million and smooth hose 6million).
We use automatic high speed braiding machine and advanced quality management system to ensure the reliability and stability of the products. We have strict ISO quality control system and after-sales service system as well.
Each batch of goods will do burst pressure tests and impulse tests before leaving factory. Welcome customers domestic and abroad to visit and negotiate with JINTONGDA, we will serve you wholeheartedly. Sincerely awaiting for your visit.

Key Features: Specializes in hydraulic hose production Compliance with international standards Advanced quality management system Strict ISO quality control After-sales service system Benefits: High-quality products Reliable and stable performance 10 million meters annual production capacity Strict quality control for customer satisfaction FAQ
Q1. What are your payment terms?
A: We accept T/T with 30% in advance and the balance upon receipt of the copy of the Bill of Lading.

Q2. What are your delivery terms?
A: We offer FOB, CIF, EXW, CFR, and other delivery terms.

Q3. What is your delivery time?
A: Our standard delivery time is 15 days for a 1x20'GP and 25 days for a 1x40'GP. The specific delivery time may vary based on the items and quantity ordered.

Q4. What is your Minimum Order Quantity (MOQ)?
A: Our usual MOQ is 500 meters per size, and we also accept trial orders. Additional packing and operating costs may apply for LCL shipments.

Q5. Do you test all your products before delivery?
A: Yes, we conduct 100% burst pressure tests and impulse tests on all our products before delivery.

---
