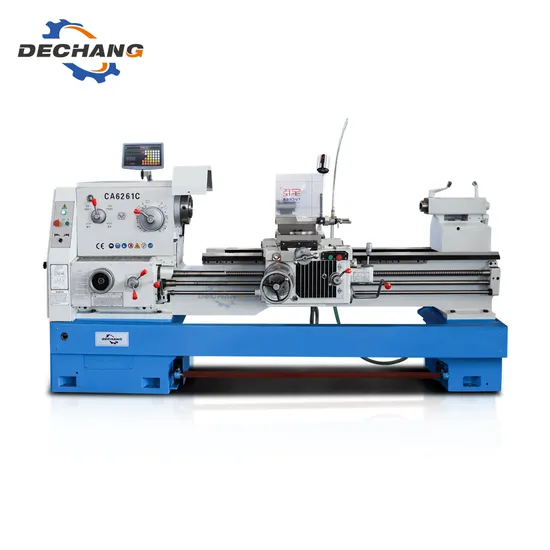

Torno Mecanico Horizontal Conventional Universal Lathes Ca6261 Manual Gap Bed Parallel Precision Metal Lathe

Product Description

Torno Mecanico Horizontal Conventional Universal Lathes Ca6261 Manual Gap Bed Parallel Precision Metal Lathe
Product Description
The main performance characteristics:
1 Machine tool bed box, headstock and tailstock, pallet etc. the binding surface between the manual scraping machine, after rigorous testing, the precision and stability of the effective guarantee machine.
2 The machine adopts high strength cast iron, copper and chromium added special materials, bed width 400mm, bed rail quenching depth 4mm, effectively improve the wear resistance and stability of machine tool.
3 Machine tool bed box lubricated system by the use of the lubrication of the pump for lubrication, for the hot weather, to ensure the cleanliness of the bed box and heat dissipation characteristics, effectively extend the bearing a nd gear life.
4 Machine tool spindle using Wafangdian bearing, spindle hole diameter 52mm, the precision grinding machine tool gear, effectively improve the hardness, reduce machine noise.
5 Machine tool uses the domestic brand screw, wire mother uses the high quality bronze alloy to guarantee the wear resistance and the accuracy retention.
6 Machine tool with four position high strength tool, shank size: 25x25mm.
Application:
1 CA series of ordinary horizontal lathe is suitable for turning inside and outside cylindrical surface, conical surface and other rotating surface, turning various metric and inch, modulus and pitch thread, and can carry out the work of drilling and pulling oil groove, is a very versatile horizontal lathe, widely used in all kinds of shaft and disc parts of the batch processing.
2 This series of lathe bed width in general lathe, rail width 400mm has a high stiffness; guide rail surface is quenched by medium frequency, and is durable.
3 The machine operation is flexible and concentrated, the apron with fast moving mechanism. Using single handle vivid of the operation, pleasant and good..
4 Machine tool structure rigidity and transmission rigidity are higher than the general lathe, the power utilization ratio is high, is suitable for the strong cutting.
5 Machine tool factory in strict accordance with the test procedures for testing, and make a strong cutting test, to ensure that the machine has a good accuracy and reliability.
Product main technical specifications:

Specifications		CA6161 CA6161B CA6161C	CA6261 CA6261B CA6261C
Max. Swing over bed		610mm
Max. Swing over carriage		370mm
Max. swing in gap		--	830mm
Effective gap length		--	210mm
Max. length of work piece		750mm/1000mm/1500mm/2000mm/2200mm/3000mm/4000mm
Width of bed		400mm
Section of turning tool		25x25mm
Spindle	Spindle speeds	10-1400rpm/16-1400rpm(24steps)
	Hole through spindle	52mm. (80mm). [105mm]
	Spindle taper	NO.6(MT6)(Φ90 1:20)[Φ113 1:20]
Feed	Number of feeds	64 kinds(for each)
	Range of metric threads(kinds)	(1-192mm)44 kinds
	Range of inch threads(kinds)	(2-24tpi)21 kinds
	Range of module threads(kinds)	0.25-48 (Moduie39kinds)
	Range of pitch threads(kinds)	1-96DP(37kinds)
Tailstock	Max. tail stock spindle travel	150mm
	Tail stock spindle diameter	75mm
	Taper of tail stock spindle center hole	NO.5(MT5)
Main motor		7.5KW(10HP)
Packing dimensions (L*W*Hmm)	Overall dimensions for750mm	2550x1140x1750
	Overall dimensions for1000mm	2700x1140x1750
	Overall dimensions for1500mm	3200x1140x1750
	Overall dimensions for2000mm	3700x1140x1750
	Overall dimensions for2200mm	4030x1140x1750
	Overall dimensions for3000mm	4850x1140x1750
	Overall dimensions for4000mm	5800x1140x1750
Weight (kg)	Length	G.W N.W.
	Weight for 750mm	2300 2180
	Weight for 1000mm	2380 2250
	Weight for 1500mm	2577 2437
	Weight for 2000mm	2940 2787
	Weight for 2200mm	3120 2970
	Weight for 3000mm	3600 3450
	Weight for 4000mm	3950 3800
