Product Details
Product Description
Product Description
The characteristic of magnetic cores is hard brittleness, and the machining surface requires that the amount of grinding should not be too large. Generally, it is appropriate to choose between 0.1~0.3 millimeters for each grinding. There are also differences in actual work, and appropriate adjustments can be made according to the actual machining needs. Magnetic core grinding is generally done to obtain better surface roughness and improve the characteristics of the magnetic core after assembly and use. During the grinding process, it is important to note that there should be no foreign objects under the steel plate used for the pad (it should be very flat), and the product should not shift the conveyor belt during movement. The grinding wheel should not be tilted, and the rounded corners of the grinding wheel should be moderate. During the grinding process, attention should be paid to cooling water at all times. Lack of coolant or incorrect spray position can cause damage to magnetic material products. Dongju magnetic core grinding wheel can grind the E-type magnetic core flat and air gap twice, with high grinding accuracy and long service life. The types of magnetic cores that can be processed include grinding, slotting, cutting, drilling, etc. for various models such as RM, EE, EF, EFD, EP, RM8, etc.

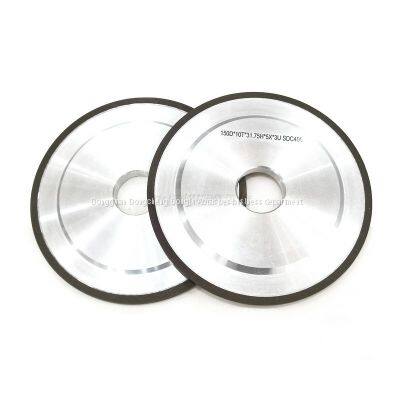

Name: Grinding wheel for grinding magnetic cores
Brand: Dongju
Model: 14A1
Material: Diamond
Category: Resin binder
Matrix: aluminum alloy
Diameter: 150mm
Width: 3mm
Wall thickness: 5mm
Inner diameter: 31.75
Particle size: 400#
Customization: Yes
Imported or not: No
Origin: Dongguan
Weight: 700g
Specification: 150D * 10T * 31.75H * 3.0U * 5X
Function: rough and fine grinding of Ferrite core material
Applicable scope: RM, EE, EF, EFD, EP, RM8
>>
