All Kinds of Models All Kinds of Models Wood Crusher Machine Wood Crusher Machine

Product Description

Product Description The wood crusher machine, also known as the wood sawdust machine, integrates slicing and crushing. It can cut branches and logs with a chip diameter of 1 to 45 cm. It can also be used to crush fibrous stalk-like materials such as bamboo, thatch, corn stalks, and sorghum stalks. This machine has a wide range of uses, low price, and very stable quality, so it sells very well in the foreign trade market.

Product Parameters

Model	Power(kw)	Capacity(kg/h)	remark
Model 500 double feed port (bottom discharge)	15	300-500	Log 15cm, plate 35cm
Type 600 Double nozzle (High ejection)	22	700-800	Log 15cm, plate 45cm
500 heavy duty double port	30	1200-1400	Bring out sand clone + dust removal
600 heavy double port	45	1800-2000	Bring out sand clone + dust removal
500 heavy duty forced feed	30+2.2+2.2	1200-1400	Sand clone + dust removal +3m forced feed
600 heavy duty forced feed	45+2.2+2.2	1800-2000
600 heavy crushing and crushing machine	3+3+37+45+7.5	1200-1500	Discharge sand clone + dust removal +4m forced feed + independent fan + electric cabinet

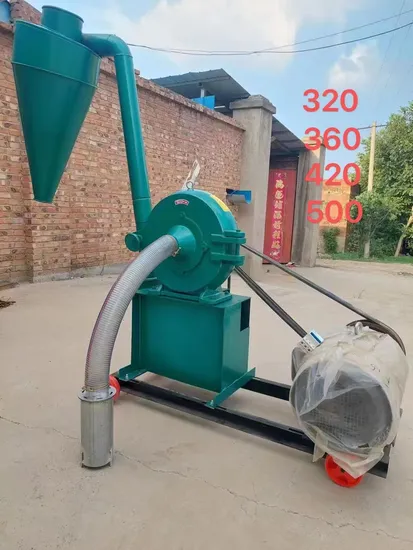

Detailed Photos
Application field The wood crusher is used to crush wood log, branches, or wooden crops waste such as straw, palm leaves, corncob, and other branches. The output sawdust size can be controlled by the sieve inside. The final outputs can be used for making pellets, organic fertilizer, feed, mushroom substrate or charcoal rod.
Working principle Wood flour machine structure and crushing principle:1. The wood flour machine is composed of three parts: the body, the middle body and the lower body.2. The crushing knife is composed of a 7-type knife, a 1-type knife and a centrifugal knife.3. The auxiliary machine is composed of a fan, a powder collector and a dust collector.4. The main machine's crushing chamber adopts 7-type knife, one-type knife and centrifugal knife. There are coarse crushing, fine crushing and centrifugal reciprocating crushing. The motor drives the rotor of the crusher to run at high speed, so that the machine generates high-speed airflow to produce high-strength crushing materials. Impact force, compression force, cutting force, friction force, to achieve a unique crushing function.5. During the cutting and crushing process of the three kinds of blades, the rotor generates a high-speed airflow that rotates with the direction of the blades. The materials are accelerated in the airflow and repeatedly impacted and cut friction. At the same time, they are subjected to three kinds of crushing effects. The crushed materials enter the analyzer with the airflow. Analysis, due to the centripetal force of the airflow when it is subjected to the centrifugal force of the analyzer rotor, when the centrifugal force is greater than the centripetal force, the fine particles will enter the powder collector with the airflow for collection, and the coarse particles will enter the centrifugal crushing chamber and continue to be crushed until you are satisfied. The fineness.
Packaging & Shipping
Factory Display:
Our Advantages 1.Easy to transport
wood crusher with high chassis plate, short wheel base, and turning radius,making them very easy to drive, especially in transport to hard to reach.
2.Greatly reduce material transportation cost
wood crusher can be directly transported to the raw material to be processed at the reduced mass transportation of raw materials sectors, thus saving the cost of transportation of raw materials.
3.Wide range of uses
wood crusher can be operated as independent units, two-stage crushing plant with primary and secondary crushing, three-stage crushing plant with primary, secondary, and tertiary crushing.
4.Good performance and easy to maintenance
wood crusher adapt excellent quality crusher, belt conveyor can be used to deliver normal materials, stable and reliable performance, simple operation, easy maintenance, low investment and high return.
Pre-sales service 1.Tailor-made efficient technical solutions for you. 2.Tell us your needs, we will recommend the machine to you, professionally introduce the machine 3.Service consultation in 365 days a year. 4.24 hours to respond to messages in a timely manner service During the project 1.Standardized precision production of production orders in 8 major departments. 2. The operation of the machine will be tested before delivery, video will be given to the customer, and the machine will be checked and accepted 3.The entire production process is visualized, which is convenient to check the production progress at any time. 4.The idling machine test is combined with the feeder test - strict quality inspection. After-sale service 1. Accepting service consultation in 365 days a year. 2. Our after-sales engineer can come at any time for maintenance. 3. We will return customers on a regular basis, to ensure proper operation of the production line. 4. We provide accessories for all equipment.
FAQ: Q: What are your payment terms?
A: 50% deposit by T/T, balance to be paid before shipment.
Q: What are your main markets?
A: Southeast Asia, Africa, Oceania and Europe
Q: What is your production time?
A: The production time depends on the machine you order. It usually takes 45 days.
Q: What documents can you provide?
A: We can provide invoices, packing lists, contracts, instructions, customs declarations, certificates of origin, CE. If the customer needs other documents and specifications, please confirm with the service staff.
Q: How will you deal with quality problems in the equipment?
A: We will be responsible for all quality problems. We'll check the machine to find out the problem. If you need parts, I'll send them to you.
Q: How long is the warranty?
A:One year.(Damage to vulnerable parts is not guaranteed and requires additional purchase)

---
