Welcome to visit

1L Laboratory Small Rotary Vacuum Evaporator Rotovap Rotavapor

Product Details

Product Details

Product Description

Product Description

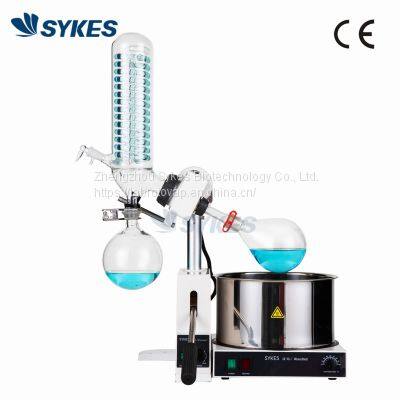

1L Laboratory Small Rotary Vacuum Evaporator Rotovap Rotavapor
Working Principle
An ( Explosion-proof ) rotary evaporator ( also be called rotary vacuum evaporator or Rotary Devaporizer or rotovap or rotavapor or rotavap ) is used for purification and distillation test. They rotate and shape a thin film in negative pressure condition by heating, evaporate efficiently, and then condense and recollect solvent to purify and separate.
Application
1. An ( explosion-proof ) rotary evaporator ( also be called rotary vacuum evaporator or Rotary Devaporizer or rotovap or rotavapor or rotavap )is a device used in chemical laboratories for the efficient and gentle removal of solvents from samples by evaporation. It is widely applied in such experiments such as concentration, evaporation, distillation, separation of chemical, using the rotating bottle to dry the powder and crystallization and so on.
2. An ( explosion-proof ) rotary evaporator ( also be called rotary vacuum evaporator or Rotary Devaporizer or rotovap or rotavapor or rotavap ) can be used with recirculating water vacuum pump and low temperature cooling liquid circulating pump/ recirculating chiller to form the total system.
Features
1. Sealing rings adopt imported German technology polymer composite to guarantee high vacuum level.
2. Lifting operation is convenient with smooth, and it is convenient to lock it.
3. Equipped with the special motor, rotation speed is stable and smooth, and rotation speed is 10 ~ 120rpm.
4. German mechanical temperature control can guarantee precise control.
5. High efficient condensation can reach 1500c㎡ condensation area.
6. High recovery.
Configuration
Technical Data
Product
Rotary Evaporator
Model
SK-98-1
Performance
Rotary Speed (R/min)
10-120
Evaporating Speed(ml/min)
40
Ultimate Vacuum Degree (mp)
0.1
Function
Speed Control
Mechanical speed regulation
Safety Function
Overload Protection
Lifting
Manual lifting
Structure
Motor
Output Power 25W
Condenser Type
Double serpentine condensing tube
Evaporating Flask
0.5L/ 1L/ 2L Optional
Receiving Flask
1L
Glass rotation axis
15*190
Vacuum Sealing
Polymer composite
Specification
Diameter of cooling nozzle (mm)
10
Lifting Distance(mm)
120
Temperature Range(℃)
Room temperature -99℃
Rated Power Supply (V)
220
Dimension (mm)
400*490
Weight(kg)
21
