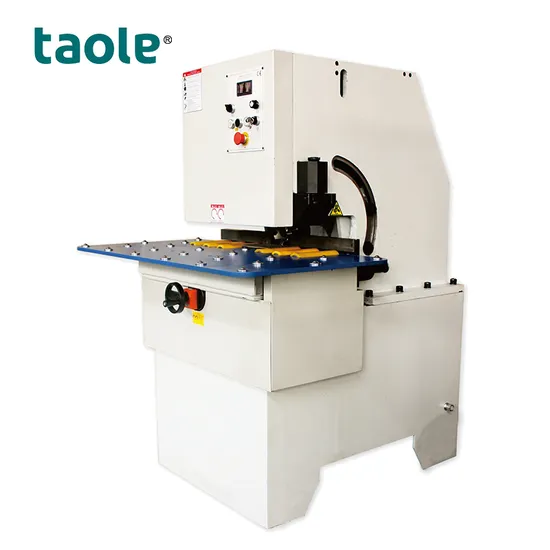

Auto-Feeding Stationary Edge Milling Machine for Beveling on Metal Plates Plate Beveler

Product Description

PRODUCT DESCRIPTION

Edge milling machine is kind of stationary table type edge milling machine specially for small plates. S30T speed at 0-1500r/min, Milling head speed adjustable. Clamping thickness 8-80mm at 10-75 degree which is specially for small size but heavy duty metals. This stationary models are suitable for bulk process for metal plates with continously metal feeding. Widly applicated for engineering, machinery , technical schools etc. Machine widely used for beveling on carbon steel, stainless steel, aluminum steel ,alloy steel etc. Available for regular bevel joint V/Y.

Main Figures1.Stationary Machine Suitable for bulk production with continously feeding
2.Unique machine design request small work place only.
3.Cold cutting to avoid any oxide layer by using market standard milling head and carbide inserts
4.High precision performance on bevel surface at R3.2-6..3
5.Wide working range, easy to adjust for bevel angel and clamping
6.Specially for V/Y type bevel joint
7.High working speed whcih estimated to be 0.5-1.2m/min 8.S20T design for small metals, S30T design for heavy duty metals. Double Motor for higher efficiency. Cutter Speed adjustable suitable for multi material with different hardness.
Parameter Comparison Table

Model No.	TMM-S20T	TMM-S30T
Power Supply	STD 380V 50Hz Can be Customized	STD 380V 50Hz Can be Customized
Total Power	1620W	4520W
Spindle Speed	2000r/min	500~1050r/min
Feed Speed	0-1000mm/min	0-1500mm/min
Clamp Thickness	3~30mm	8~80mm
Clamp Width	>20mm	>80mm
Process Length	>150mm	>300mm
Bevel Angle	25 ~ 80 Degree Adjustable	10 ~ 75 Degree Adjustable
Single Bevel Width	0~12mm	0~20mm
Bevel Width	0~25mm	0~70mm
Cutter Plate	Diameter 80mm	Diameter 80mm
Insert QTY	9 pcs	6 pcs
Bevel Joint	V, Y	V, Y
Table Height	580mm	850-1000mm
Travel Space	450*100mm	1050*550mm
N.W / G.W	155/180 kgs	850/920 kgs
Packing Size	640*850*1160mm	1210*1310*1750mm

Detailed Images

Clamping Thickness Adjustment

Bevel Angel Adjustment

Easy to disassemble and replace the milling head

Processing process diagram
Packing shipping

---
