Latest Technology 400kw Biogas Generator Gas Generator with Vman Engine

Product Description

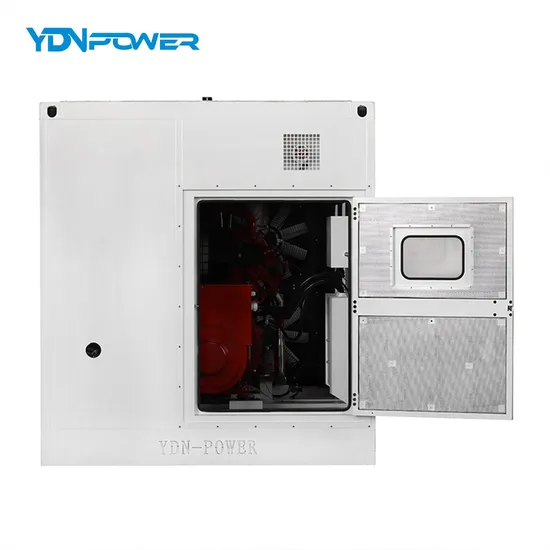

300kw 375kva VMAN Biogas Generator Set
Genset Model			YDNV-300
Rated Power (kW/kVA)			300/375
Rated Current (A)			540
Dimension (mm)			3420*1700*2100
Gross Weight (kg)			3800
Biogas Engine	Brand		VMAN
	Model		DT22
	Configuration		Four-stroke,Water-cooling,Direct Injection,12V-type
	Rated Power (kW/kVA)		324/405(CH4 no less than 55%)
	Rated Speed (rpm)		1500
	Cylinder No.		12.V
	Bore*Stroke (mm)		128×142
	Cooling Method		Water cooling
	Oil Consumption (g/kw.h)		1
	Gas Consumption (m3/h)		≤180@100Load
	Starting method		24V DC
Gas control system	E-Throttle		BOSCH®(German Brand)
	MIXER		IMPCO®(USA Brand)
	Regulator		MADAS®(Italian Brand)
	Spark plug		TORCH®(China Brand)
	Water temperature		BOSCH®(German Brand)
Alternator	Brand		FARRAND
	Model		FLD-300
	Rated Power (kW/kVA)		300/375
	Material		High performance 100% copper
	Efficiency		94.50%
	Voltage Regulation		<=±1
	Voltage Regulation		Brushles, Self Excitation
	Insulation Class		H
Control System	Brand		SMARTGEN
	Model		HGM6110N
	Working Voltage		DC8.0V to DC35.0V, continuous
	Overall Dimensions (mm)		197*152*47
	Panel Cutout (mm)		186*141
	Working Condition		Temperature: (-25~70)ºC; Humidity: (20~90)%
	Weight		0.56kg

Requirments for Biogas 1.Methane should be at least 55%
2.The biogas temperature should be between 0-60 ºC
3. No inpurity should be in the gas. Water in the gas should be less than 20g/Nm3.
4. Heat value should be at least 5500kcal/m3, if less than this value, the power of the engine will be declined.
5. Gas pressure should be 8-14KPa, if the pressure is less than 3KPa, booster fan is necessary.
6.The gas should be dehydrated and desulfurated. Make sure that there is no liquid in the gas. H2S<200mg/Nm3 FAQ
Q1: Are you a trading company or a manufacturer? Answer: We are a factory Q2: What is your power range of your diesel generator? A: We can provide 10KW-1500KW diesel generator and comprehensive power supply solutions for you Q3: What is the delivery time? A: 4-6 weeks Q4: What is your minimum order quantity(MOQ)? A: 1 set. Q3: What are your terms of payment? Answer: 30% by TT in advance and 70% balance before shipment. Q4: What is your warranty period? A: Our warranty period is 1 year or 1000 hours, whichever comes first. But according to some special items, we can extend the warranty period. Q5: Do you provide OEM services? A: Yes. Q6: How can I trust you? A: If you are not satisfied with the pictures, videos, boarding reports, load tests, customer experience and sales staff's understanding of the generators you are interested in, we invite you to visit our spacious storage yards and stores to witness your generators. Carry out a load test and check our professional operations here. Q7: What should I do after I receive the generator set? Answer: Please read the operation manual carefully after obtaining the generator. The generator is attached with the user manual. With Operation, Installation, Maintenance and Repair Guide.

---
