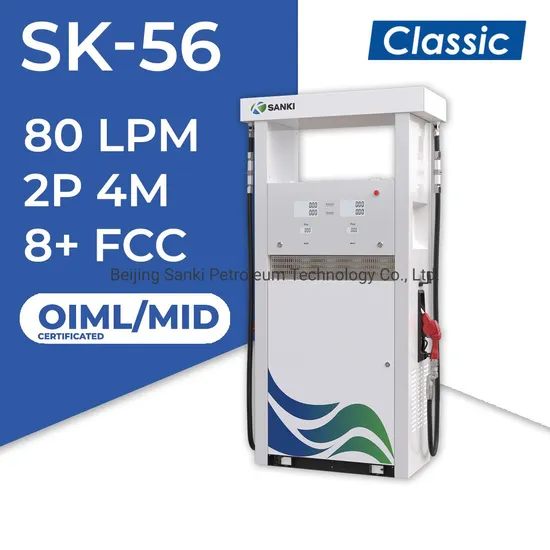

Sanki Classic-56 80lpm4 Hose with OIML\MID Certificate Fuel Dispenser

Product Description

Features:
* Best exterior construction and good appearance
* Trustable highly precise metrology equipment
* High performance for electronic parts
* High quality explosion-proof motor with strong ability against power fluctuation
* Specially designed filtering systems with build-in re-cleanable filter
* With rich functions expansion like POS for smart card and bank card
* Flexible fuel application for gasoline, diesel, and kerosene etc.
* Works well in harsh conditions, like extremely cold, hot, humid, and sand-stormy environment

Optional Configuration:

Technical specifications:

Accuracy for the unit	±0.25%
Flow rate	5-50L/min
Ambient temperature	-25ºC~ +55ºC; -40ºC~ +50ºC
Relative humidity	20% - 95%
Unit noise rate	< 70dB (A);
Inlet vacuum rate for suction pump	>=54kPa
Communication	With RS 485 port, or current loop
Power supply	AC 220V( -15%~+10%),(50/60±1)Hz; AC 380V( -15%~+10%); (50/60±1)Hz
Digit of sale	7digits (decimal points can be adjusted )
Digit of volume	6digits (decimal points can be adjusted )
Digit of unit price	5digits (decimal points can be adjusted )
Totalizer of sale	0~42949672.95
Totalizer of volume	0~42949672.95

Model Range
SK56ZF424A SK56ZF632B

Model	Product	Nozzle	Display		Package(mm)	Gross weight
SK56Z/G/QF424B	2	4	4	2/side	1318*820*2480	367/397
SK56Z/G/QF632B	3	6	2	1/side	1318*820*2480	427/457
SK56Z/G/QF422B	2	4	2	1/side	1318*820*2480	367/397/315
SK56Z/G/QF632B	3	6	2	1/side	1318*820*2480	427/329
SK56Z/G/QF842B	4	8	2	1/side	1318*820*2480
Z : Vane pump G: Gear pump Q: Submersible pump

About Us
SANKI Group includes SANKI and WENDBELL, is the leading refueling equipment manufacturer and a Total Retail Solution Supplier in China. SANKI is located in Beijing Economic-Technological Development Area, the SANKI Factory is a state of the art high-tech facility, Delivering high Quality products and Solutions with Commitment, customization Flexibility and Total Cost Ownership.
SANKI specializes in the design and manufacture of total refueling solutions for the oil and gas industry, with wide product range that covers motor spirit and diesel dispensers, LNG/LPG dispenser, SF Tanks, Skid stations, Automatic tank gauging equipment, Fuel management system & tank calibration system.
All key components manufacture, such as flow meters, pumps, and the entire electronic head are designed and manufactured in house by SANKI in China. Sanki is also the only dispenser manufacturer to have an in-house electronics board manufacturing line within their local facility.
With a manufacturing capacity over 6000 unit per month, The SANKI sales and network covers over 40 countries around the word, including Eastern Europe, Russia, Australia, Asia, Africa & South America. Within China, Sanki is also one of 3 main suppliers to China's SINOPEC and PECHOCHINA Oil companies with more then 70 Sales and Support/Service centers and 67 authorized partners across China

---
