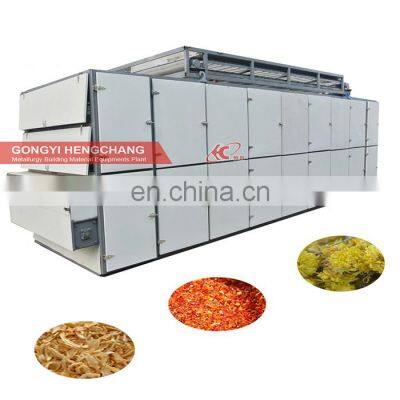

Product DescriptionNew Design Multifunctional continuous charcoal belt dryer for balls briquette machineI. Specification of charcoal belt dryer for balls briquette machineHere are different dimensions briquett mesh belt dryers manufacturered in my factory, they are 1.2*10m; 1.2*16m; 1.2*20m; 1.5*10m; 1.5*16m; 1.5* 20m; 1.8*10m; 1.8*16m; 1.8*20m; etc. Machines' dimension can be disigned according to customers' material information and moisture content.charcoal briquette dryer/ briquette dryer machine/ charcoal briquette dryer machineII.Working Principle of charcoal belt dryer for balls briquette machineThe materials are uniformly put on the mesh-belt by the feeder. The mesh-belt uses generally 12-60 mesh stainless steel wire net and it is drawn and moved inside the drier by a transmission device. The drier is composed of several units. For each unit, the hot air is circulated separately. Some exhausted gas is discharged with a special moisture elimination blower. The waste gas is controlled through an adjustment valve. The hot air passes through the mesh-belt covered with the material from the top to thebottom or from the bottom to the top and this will complete the heat and mass transfer process. This process will bring the material water away. .V.Raw material of charcoal belt dryer for balls briquette machineDe-watering vegetable, particle feed, gourmet powder, shredded coconut stuffing, organic pigments, compound rubber, acral fibre,medicine product, medicine material, small wooden product, plastic product, aging and solidification for the electronic component and device.Coal charcoal briquettes, suitable for continuous working and large demand, ball shape and pelletsDrying chili, fruit, vegetablesIII.Main Advantages of charcoal belt dryer for balls briquette machine(1) It is widely used and has a unique advantage for the chemical industry, food industry, medicine, building materials, electronics and so on.(2) mesh belt dryer working process conveyor belt with a flexible, it can adjust the amount of air, material retention time,Heating temperature, etc., in order to achieve rapid heating and drying effect.(3) mesh belt dryer process is simple and flexible, this mesh belt dryer can be based on the actual situation of the object to adjust the corresponding data.(4) mesh belt dryer equipment configuration is very flexible, the use of two systems First, a network with a flushing system, the second is the material cooling system.(5) mesh belt dryer basically rely on the use of air recycling, to achieve drying effect, greatly saving energy.(6) mesh belt dryer also used a sub-wind device spark machine, this device makes hot air distribution more uniform,to ensure the consistency of the quality of processed products.IV.Specification of charcoal belt dryer for balls briquette machineModelMesh Width(mm)Drying Length(m)Drying Area(m2)LayerLayer Distance (mm)Running Speed(m/min)Power(Kw)Capacity(t/h)HJWD66006-123.6-361-5400-6000.06-11.1-2.26-10HJWD88006-124.8-481-5400-6000.06-11.1-2.28-15HJWD1010006-166-801-5400-6000.06-11.1-2.210-20HJWD1212008-167.2-961-5400-6000.06-11.1-312-25HJWD1616008-2212.8-1051-5400-6000.06-11.1-315-30HJWD20200010-2620-2601-5400-6000.06-11.5-418-35HJWD24240012-3029-3601-5400-6000.06-13-7.520-40HJWD30300012-4036-6001-5400-6000.06-15-1125-50charcoal briquette dryer/ briquette dryer machine/ charcoal briquette dryer machineCompany ProfileGongyi Hengchang Metallurgy Building Material Equipments plant was built in 1992, a professional manufacturer specializing in the production of coal slurry dryer, coal slime dryer , coal dryer ,sawdust dryer , fly ash dryer , slag dryer ,vinasse dryer and so on.We have professional engineers and experienced workers in our factory, we ensure that we supply good quality and good price to our customers. Our products as followings: 1. Bucket elevators: TD Belt type bucket elevator, TH round chain type bucket elevator, NE plate chain bucket elevator and Dehydrated bucket elevator.2. Screw conveyors: Pipe type screw conveyor, U-shape screw conveyor, shaftless screw conveyor and screw feeder.3. Belt conveyors: Fixed belt conveyor, mobile belt conveyor, sidewall belt conveyor and light type belt conveyor.4. Other products: Pan conveyor, Vibrating screen, Trommel screen air slide conveyor, vibrating feeder, rotary feeder and double shaft mixer etc.5. Spare parts: Elevator bucket, conveyor chain, sprocket, conveyor belt, conveyor roller, feeder pan, motor, gearbox and bearing and etc.Packing and deliveryPackaging Details:We will make different packaging according to different machine sizes standard international export packing,container, wooden box.Delivery Time:We will customize according to the actual needs of customers. Senior designers start to design the plan. After receiving the deposit, we will complete the delivery within 15 to 25working days.Customer Visit & Our Service(A) Pre-sale services:Act as a good adviser and assistant of clients, enable them to get rich and generous returns on their investments.1. Select equipment model;2. Design and manufacture products according to clients' special requirement;3. Train technical personnel for clients;4. Services during the sale;(B)Provide considerate services to minimize clients' worries:1. Assist clients to prepare for the first construction scheme;2.Install and debug the equipment;3. Train the first-line operators;4. Examine the equipment;5. Take initiative to eliminate the troubles rapidly;6. Provide perfect service;7. Provide technical exchanges...Customer casebriquette mesh belt dryer/ BBQ briquettes dryer / mesh belt dryer designFAQQ: For providing you the suitable quotation we need to know the following information:A:1. What is the raw material?2. What is the capacity per hour you required ?3. What is the maximum input size of the raw material ?4. What is the final briquettes size and shape you want? Once we get your answers, I can provide you the best quotation immediately.Remarks: The price will depend on different models.Q: What about Warranty of the products ?A:Gongyi hengchang machinary grants our customers a twelve-month-period warranty from the date of delivery for machines exported from us. During the warranty period, in case any defect of material or workmanship occurred with spare parts in norma operation,we will at our discretion replace or repair the defective parts freely.
>>
